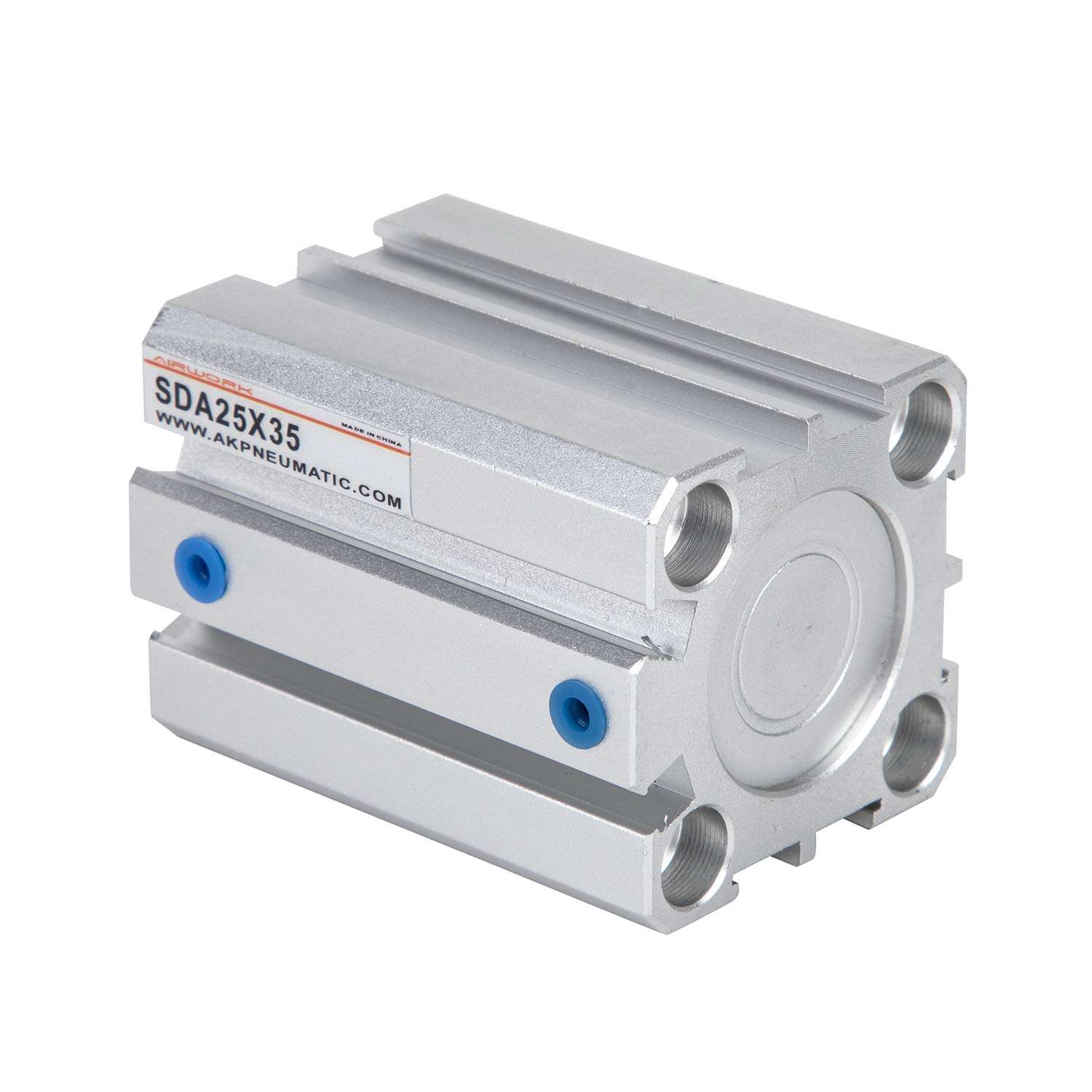

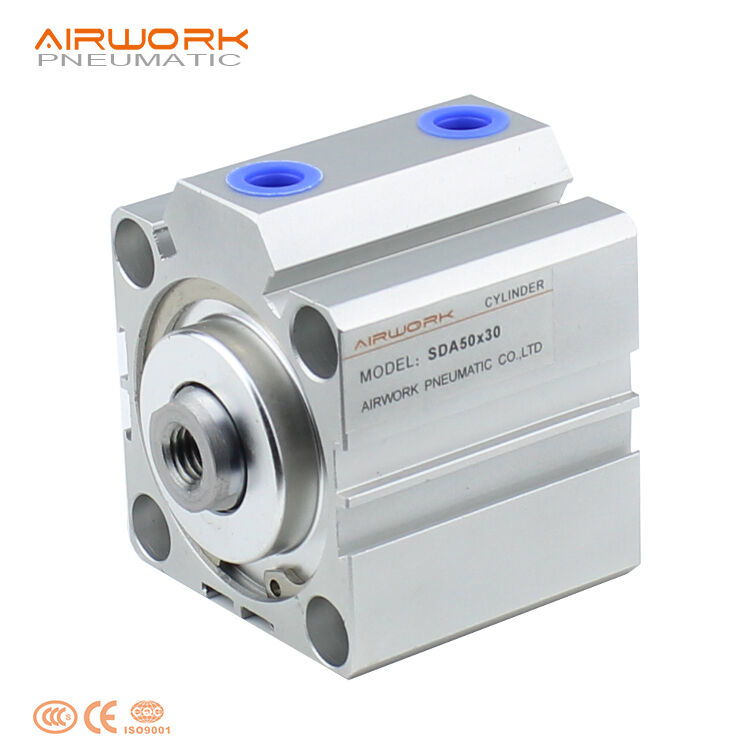

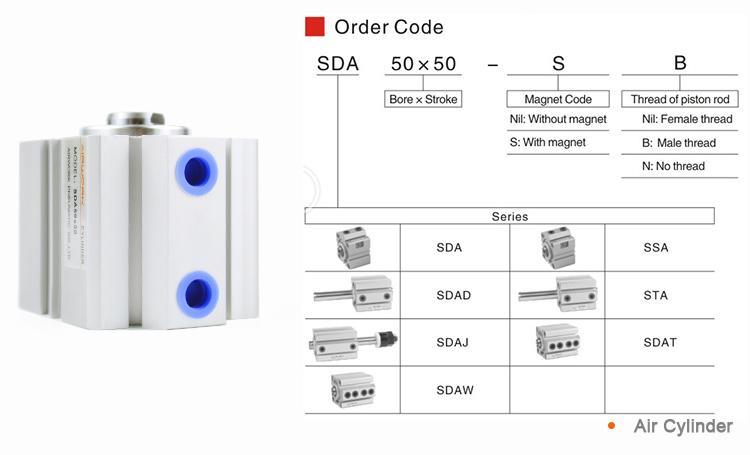

SDA Series Air Compact Cylinder
SDA Series Air Compact Cylinder can effectively save installation space, cylinder block with magnetic induction switch slot to facilitate the installation of induction switch, cylinder block inner diameter after processing wear resistance durability is stronger, can be applied to the use of high frequency requirements. Airwork pneumatic provides the most comprehensive SDA cylinder size, provides SDA cylinder selection guidance, 24 hours of technical service support, SDA thin cylinder piston up and down the installation of polyurethane anti-collision pad, cylinder 360 degrees without dead Angle chamfering.
- Overview
- Recommended Products
Product Feature
1.Manufactured by our enterprise;
2. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable;
3.The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing,forming an excellent abrasion resistance and durability;
4、The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation
5.Compact structure can effectively save installation space;
6.There are magnetic switch slots around the cylinder body, which is convenient to instal sensor switch;
7. Mounting accessories with various specifications are optional.

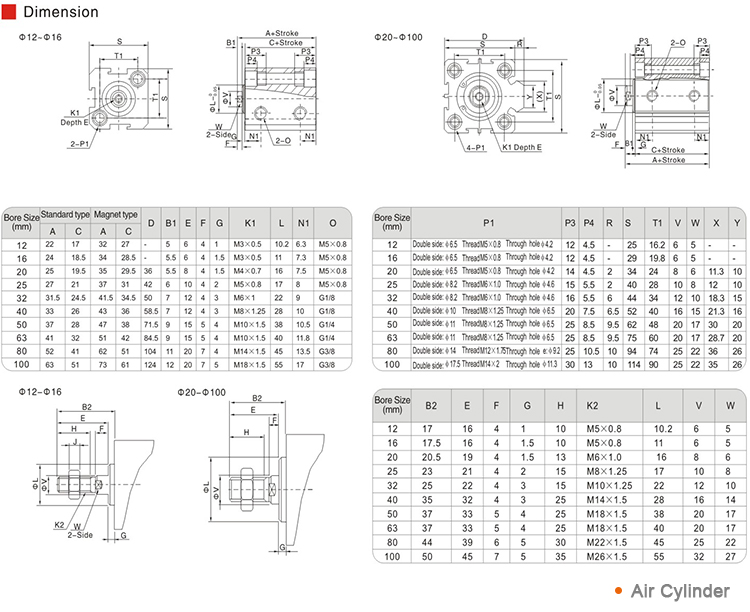

Specification
Bore size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Acting type |
Double acting |
||||||||||
Fluid |
Single acting_Push type、Single acting_Pull type |
||||||||||
Air(to be filtered by 40um filter element) | |||||||||||
Operating pressure |
Double acting |
0.15~1.0MPa(22~145psi)(1.5~10.0bar) |
|||||||||
Single acting |
0.2~1.0MPa(28~145psi)(2.0~10.0bar) |
||||||||||
Proof pressure |
1.5MPa(215psi)(15bar) |
||||||||||
Temperature ℃ |
-20~70 |
||||||||||
Speed range mm/s |
Double acting : 30~500 Single acting: 50~500 |
||||||||||
Stroke tolerance |
Strokes≤100 +1.0 Stroke＞100 +1.5 |
||||||||||
Cushion type |
Bumper |
||||||||||
Port size[Note1] |
M5x0.8 |
1/8" |
1/4" |
3/8" |
|||||||
Installation and application
1. Whenload changes in the work, the cylinder with abundant output capacity shall be selected.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 4Oum or below.
6.As both of the front cover and piston of the cylinder are short, typically too large stroke can not be selected.
7. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
FAQ
Q1. Can I directly replace your cylinders with SMC/Festo/Parker cylinders?
A1. We have the exact same models as SMC FESTO Parker, conforming to international standards (ISO6431, ISO15552, ISO6432), which can completely replace original SMC/Festo/Parker models.
Q2. Are your cylinder mounting dimensions the same as the original?
A2. Our mounting holes are exactly the same as the original. We can send you drawings for confirmation, and also confirm your thread specifications (PT/NPT/G/BSPP).
Q3. If my original brand and model are no longer available, can you provide replacement recommendations based on the old model?
A3. You can upload a photo or nameplate of your old cylinder, and we can provide a replacement model.
Q4. What material are your cylinder seals made of? What are the applicable operating temperatures?
A4. Our seals are made of NBR (general purpose), Viton (high temperature/chemical corrosion resistant), or PU (wear resistant). We can also customize cylinders with special materials to meet your needs.
Q5. What is the cushioning method of the cylinder? Is it adjustable?
A5. Cylinder cushioning methods include rubber cushioning, air cushioning, and the position of the air cushioning adjustment valve, which is crucial for reducing equipment vibration.
Q6. Can I customize a special stroke length? How long is the delivery time?
A6. We can customize any length you want, and the customization time is usually 3-5 days.
Q7. Does the piston rod (PistonRod) have a surface treatment? How is its rust resistance?
A7. Our piston rods are hard chrome plated and made of stainless steel, offering strong wear resistance.
Q8. What is your warranty period? What happens if there is a leak?
A8. Our products typically come with a 12-18 month warranty. We provide a repair kit and videos on how to repair leaks.
Q9. Do you support small trial orders? Is a full carton minimum order required?
A9. No MOQ for stock items and small quantity sample support.
Q10. What is the shipping time? Is there an expedited channel for urgent repair orders?
A10. For small and urgent orders, we can ship within three days because we have a large inventory of stock.
Q11. Can you provide test reports that comply with RoHS/CE/ISO standards?
A11. Our products comply with RoHS/CE/ISO standards and we can provide certificates.
