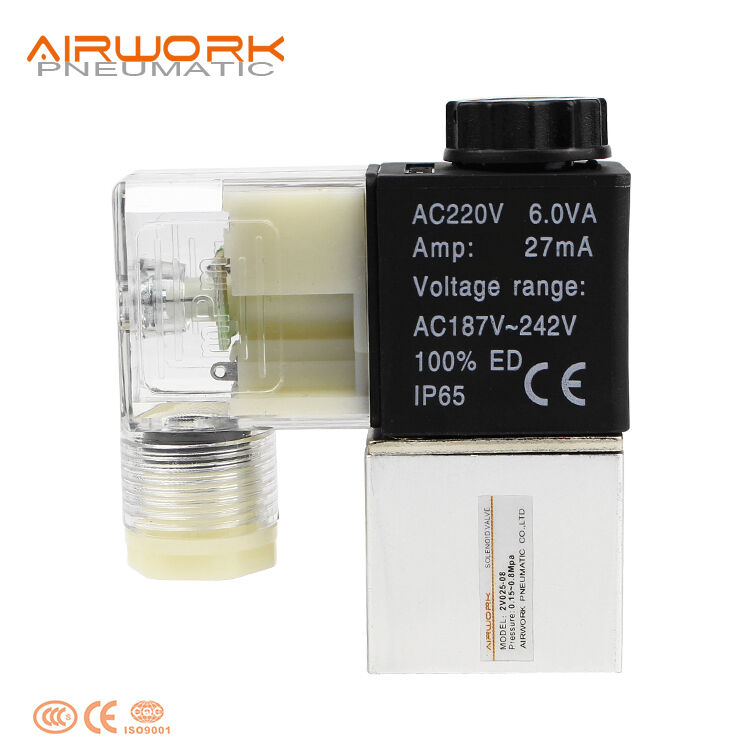

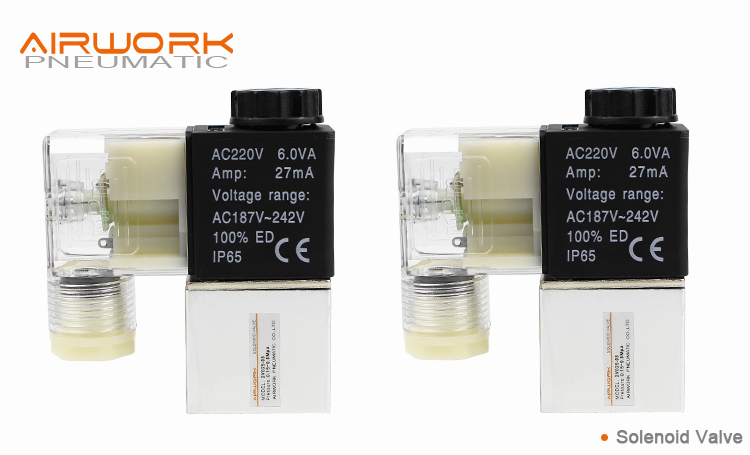

2 Way Fluid Control Valve

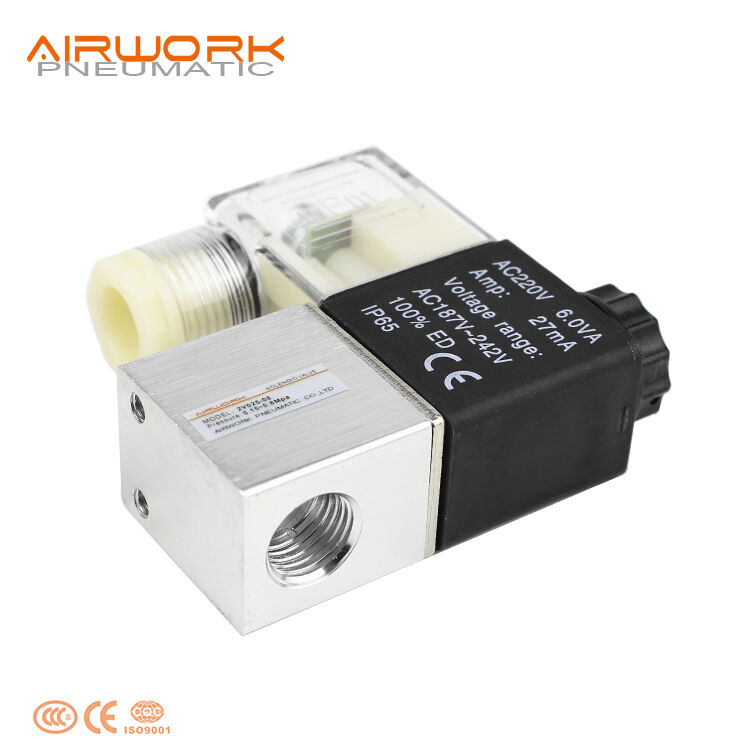

2v025 series
1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensitivity allows it to change direction quickly.
2.The structure is small and compact.
3. The valve body is made of brass which is heat resistance and the coil conforms to Class B classification.The seals are made of fluorine rubber(VITON) which is suitable for several types of working medium.
2V130 and 250 series
1.This 2/2 way diaphragm piloted solenoid valve haslow energy consumption and large air flow.
2. The starting pressure is low and the Min. Operational differential pressure is 0.05MPa.
3.The valve body is made of brass which is heat resistance and the coil conforms to Class B classification .The seals are made of NBR.
- Overview
- Recommended Products

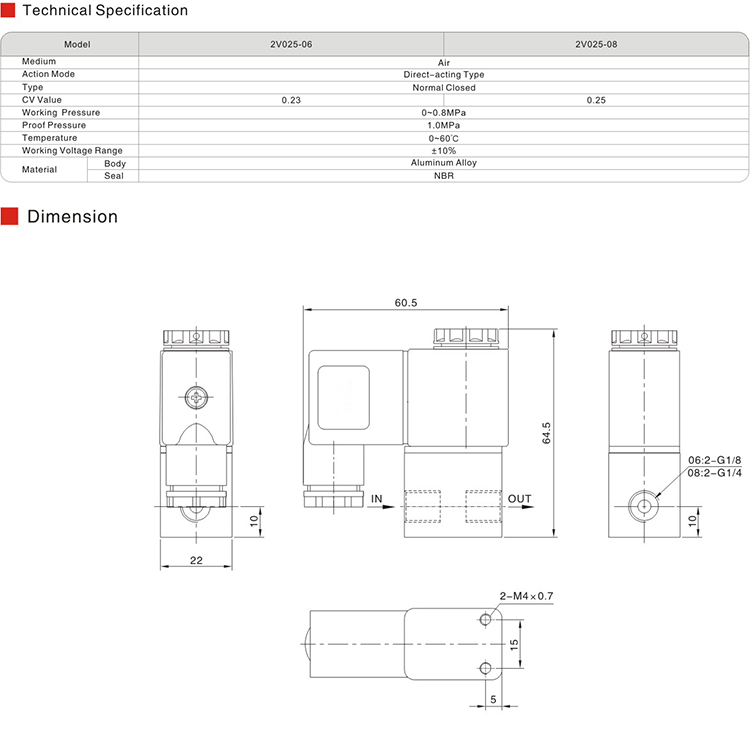

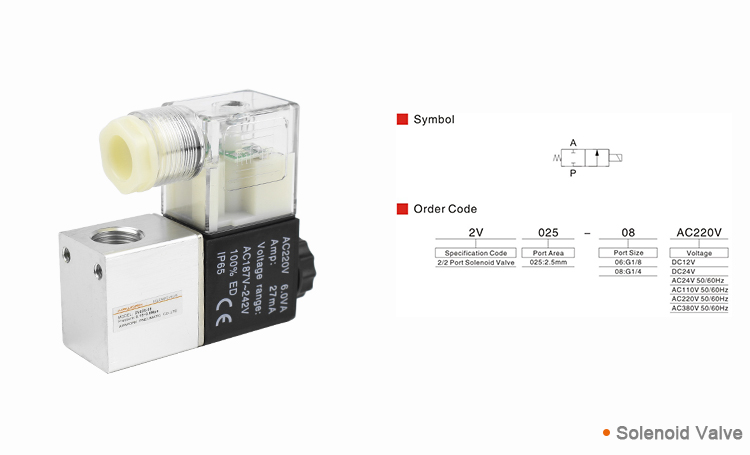

Specification
Model |
2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
Fluid |
Air.Water.Oil |
||||
Acting |
Direct acting |
Internally piloted acting |
|||
Initial state |
Normally closed |
||||
Orifice size (mm) |
2.5 |
2.5 |
13.0 |
13.0 |
25.0 |
Cv |
0.23 |
0.25 |
6.20 |
6.20 |
13.00 |
Port size |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
Viscosity limit |
Under 20CST |
||||
Pressure range |
0~1.0MPa(0~145psi) |
0.05~1.0MPa(7~145psi) |
|||
Proof pressure |
1.5MPa(215psi) |
||||
Material body |
Aluminum alloy |
||||
Seal material |
NBR |
||||
Activating time |
0.05 secand below |
||||
Installation and usage
1. Before installing, be sure the valve hasn't been damaged via transportation
2. The coil must be pure vertical, the inlet and outlet on body must be horizontal. it's suggested to use the medium lubricated by 40um filter element. Be aware of the flow direction and port size
3. Please notice whether the installation condition accords with technical requirements (such as "voltage", actuation frequency”, "working pressure” and "scope of application temperature"), then the equipment can be installed and used.
4. Take measure to avoid vibration and frozen.
5. Before using the fittings and tubes make sure they are clean. When connecting tofittings, be sure the PTFE Thread Seal Tape is used correctly
6. To keep the dust away, Default paragraph font;Never forget to install dirt-proof boot in air intake and outlet during dismounting
