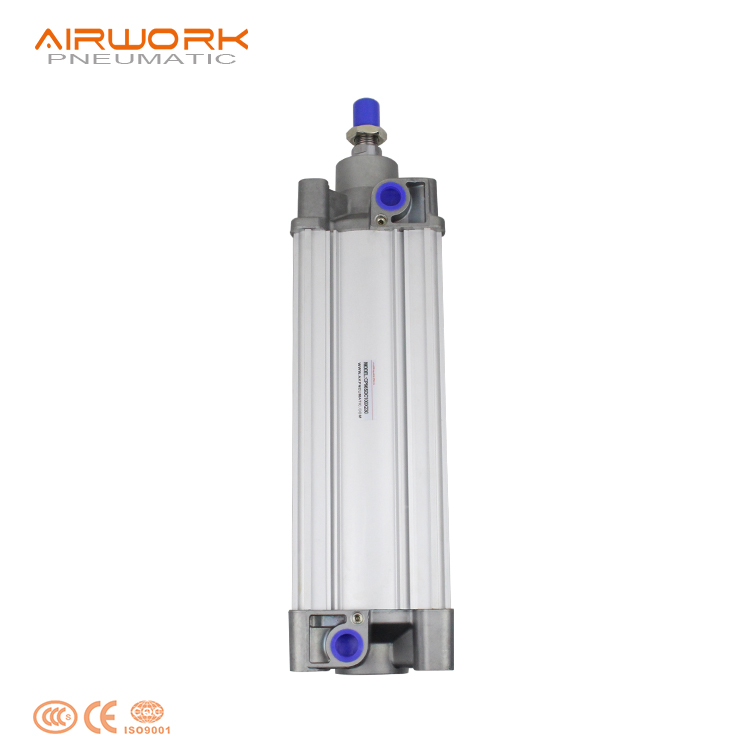

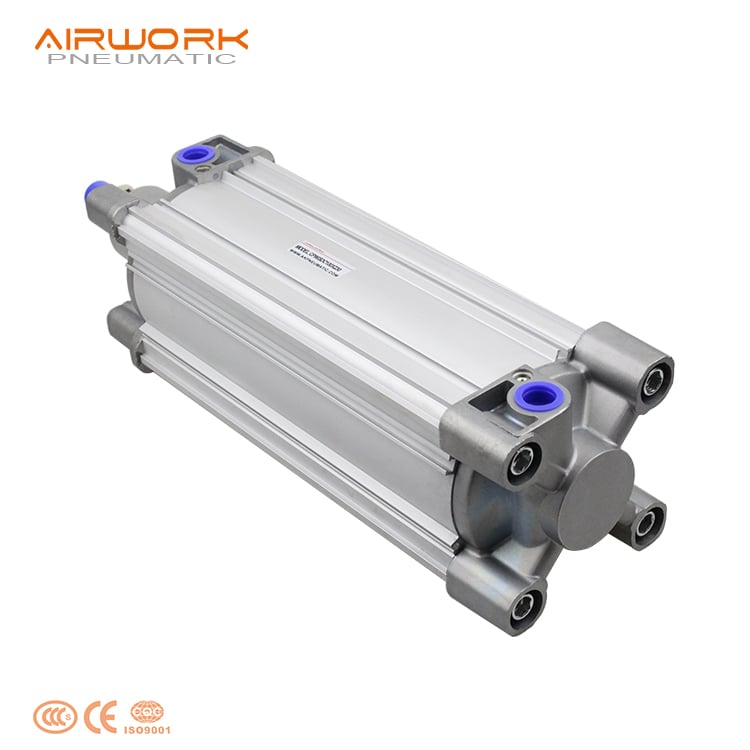

CP96 Series Double Acting Air Cylinder
The CP96 series is a high-performance pneumatic cylinder fully compliant with ISO 15552 standards. Featuring a unique aluminum profile barrel with integrated sensor slots on four sides and a "double cushion" system (air + bumper), it offers superior vibration dampening and smooth linear motion.
- Overview
- Recommended Products
Product Detailed Description：
Our CP96 Series represents the next generation of ISO standard actuators. Designed for seamless international interchangeability, the CP96 utilizes a lightweight aluminum profile body that allows for the flush mounting of auto-switches, protecting them from mechanical damage. The standout feature is its Double Cushioning System, which combines adjustable air cushions with elastic bumper cushions to significantly reduce impact noise and end-of-stroke vibration. With bore sizes from 32mm to 100mm and a maximum stroke of 2000mm, the CP96 is engineered for high-speed industrial environments (up to 1000mm/s) requiring long-term reliability and easy maintenance.
Product Feature :
1. ISO 15552 Compliance: Fully interchangeable with global standard cylinders for easy system upgrades and replacements.
2. Advanced Double Cushioning: The combination of adjustable air cushions and rubber bumpers ensures a smoother stop and longer component life.
3. Integrated Sensor Grooves: Profile barrel features recessed slots on four sides for auto-switches (e.g., D-M9BW), eliminating the need for bulky sensor brackets.
4. High-Speed Capability: Precision internal seals and low-friction barrel allow for stable operation at speeds up to 1000 mm/s.
5. Protective Options: Available with optional Nylon or heat-resistant rod boots (up to 150°C) for operation in dusty or high-heat environments.

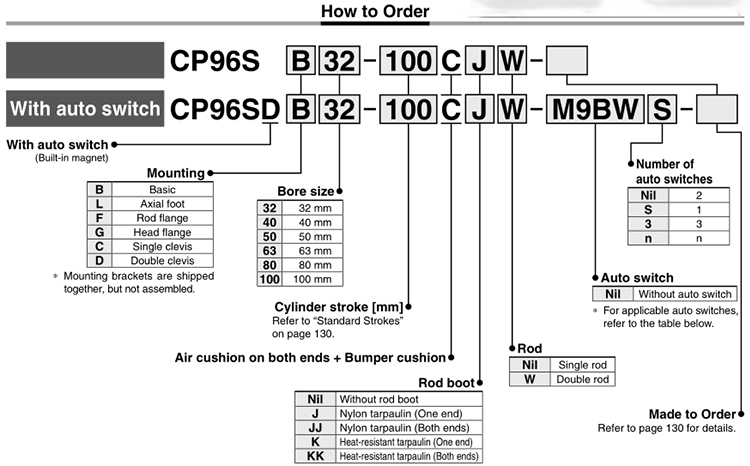

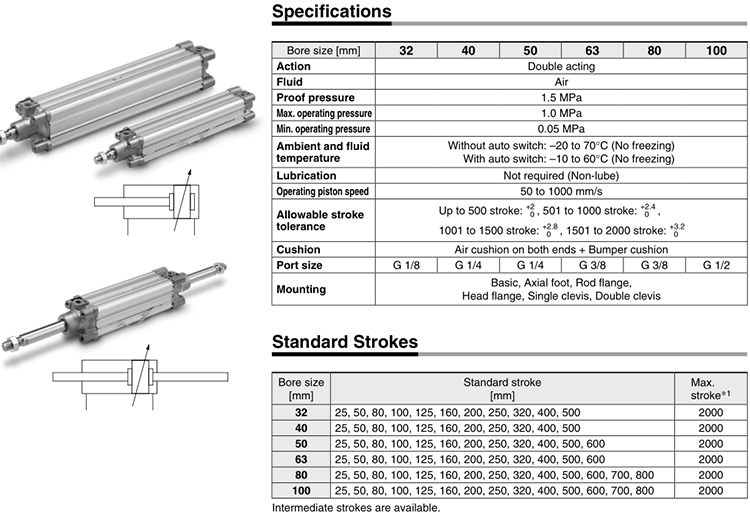

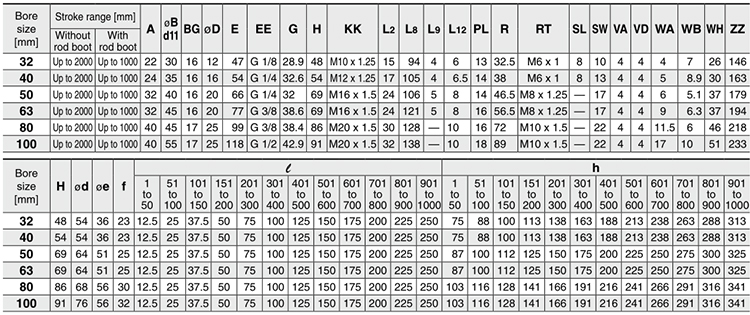

Specification：
| Series | CP96 Series |
| Bore Size | Ø32, 40, 50, 63, 80, 100 mm |
| Action Mode | Double Acting，Single/Double Rod |
| Fluid | Compressed Air |
| Proof Pressure | 1.5 MPa |
| Max. Operating Pressure | 1.0 MPa (10 bar) |
| Min. Operating Pressure | 0.05 MPa |
| Ambient & Fluid Temp. | -10 to 70°C (Non-magnetic); -10 to 60°C (Magnetic) |
| Operating Piston Speed | 50 to 1000 mm/s |
| Cushion Type | Air Cushion (Adjustable) + Bumper Cushion |
| Max. Stroke | Up to 2000 mm (Customizable) |
| Port Size | G1/8, G1/4, G3/8, G1/2 (Depending on Bore) |
1. Automotive Production Lines：
The CP96 is a staple in automotive body-in-white and assembly sections. Its ISO standard mounting and high-speed performance make it ideal for high-precision welding jigs, stamping transfers, and robotic arm auxiliary movements where downtime is not an option.
2. High-Speed Packaging & Logistics：
In automated warehouses and conveyor systems, this cylinder handles rapid sorting, palletizing, and diverting tasks. The double cushioning system is critical here to minimize noise and mechanical shock during high-frequency cycles, protecting both the machine and the goods.
3. General Machinery & Automation：

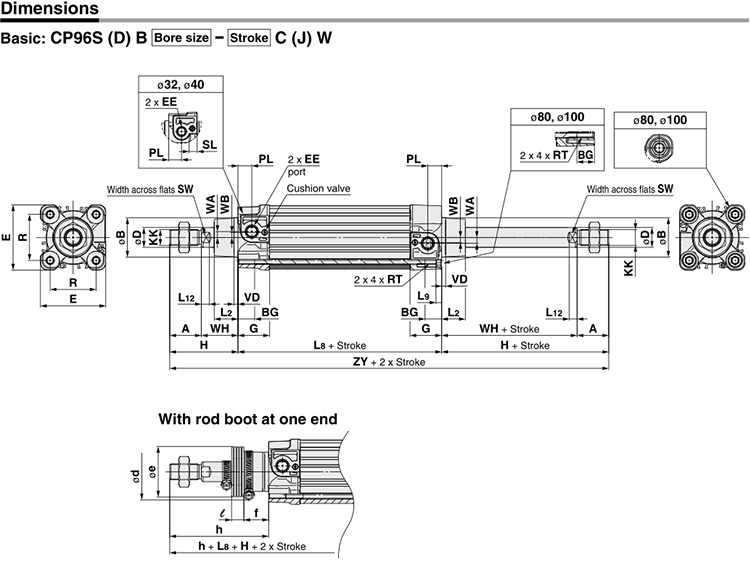

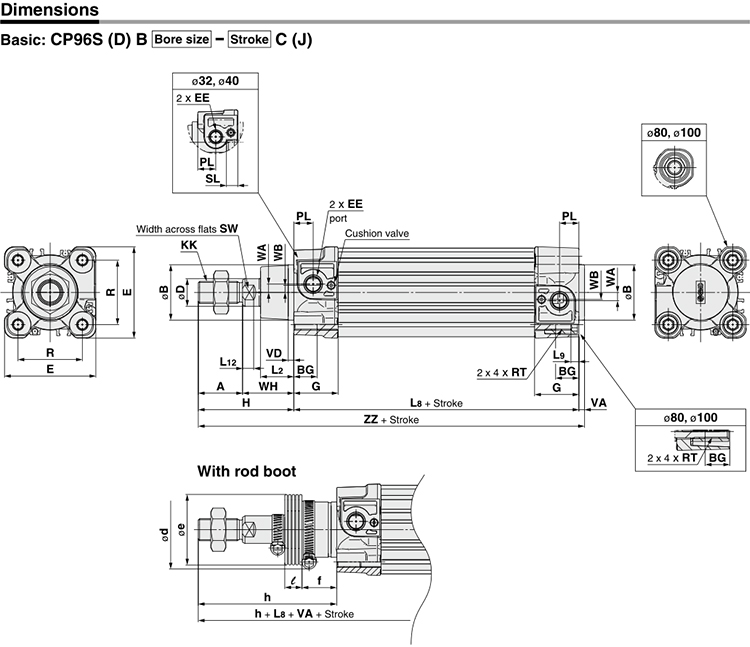

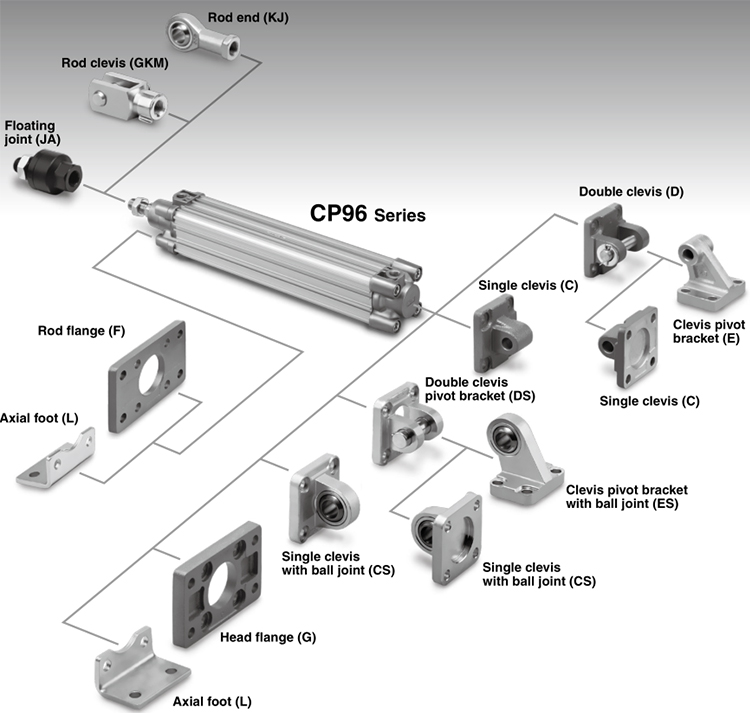

From woodworking to textile machinery, the CP96 provides reliable linear force for clamping, lifting, and feeding. The integrated sensor slots and wide range of mounting accessories (Clevis, Foot, Flange) allow for easy integration into diverse machine architectures.
Installation and Usage：
1. Piping Preparation: Always flush air lines before connection to remove debris. Use a 5-micron filter-regulator to ensure clean, dry air.
2. Mounting Alignment: Ensure the cylinder is perfectly aligned with the load. Side loads on the piston rod are the most common cause of premature seal failure.
3. Cushion Adjustment: Adjust the cushion needle valve slowly from a closed position. Do not over-tighten the valve or open it more than 3 turns to prevent it from blowing out.
4. Speed Control: Use flow control valves (meter-out) to regulate the speed. The maximum recommended speed is 1000 mm/s to ensure the air cushion can function effectively.
FAQ
Q1. Can the CP96 replace my current Festo or SMC ISO cylinder?
A1. Yes, it strictly follows ISO 15552 dimensions, making it a direct, 1:1 replacement for any standard-compliant brand.
Q2. What is the benefit of the "Double Cushion"?
A2. It uses air to slow the piston and a rubber bumper to absorb the final impact, resulting in much lower vibration and noise compared to standard air cushions.
Q3. Do you offer custom stroke lengths?
A3. Absolutely. While we have standard strokes (25-800mm), we can manufacture customized intermediate strokes up to 2000mm.
Q4. Which auto-switches are compatible with the CP96 grooves?
A4. It is designed for small, recessed sensors like the D-M9N, D-M9P, D-M9B, and their water-resistant variants.
Q5. Can this cylinder operate without lubrication?
A5. Yes, it is a "non-lube" type cylinder pre-greased at the factory. However, if you start using a lubricator, you must continue to use it.
Q6. Can it be used in high-temperature environments?
A6. The standard seals handle up to 70°C. For higher temperatures, we provide customized heat-resistant seals and rod boots.
