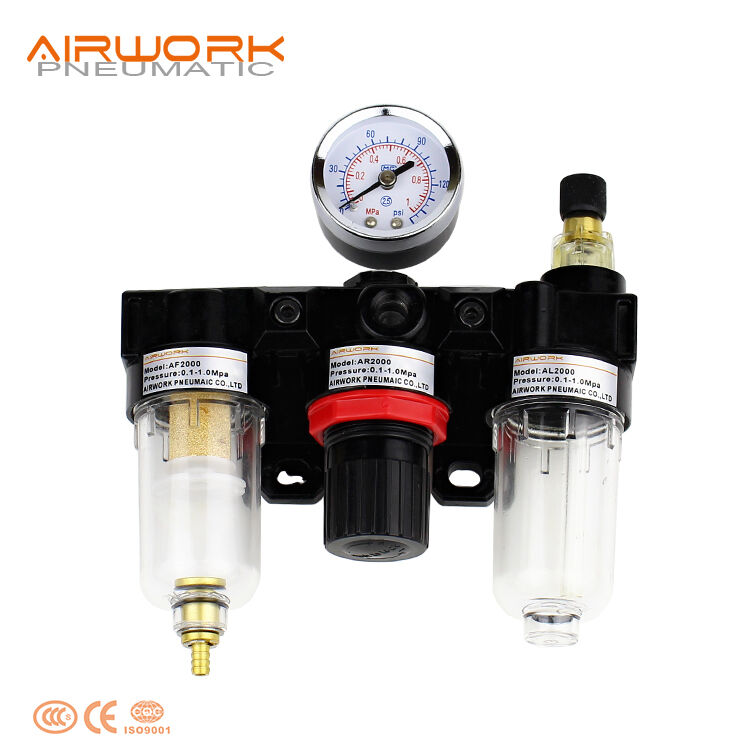

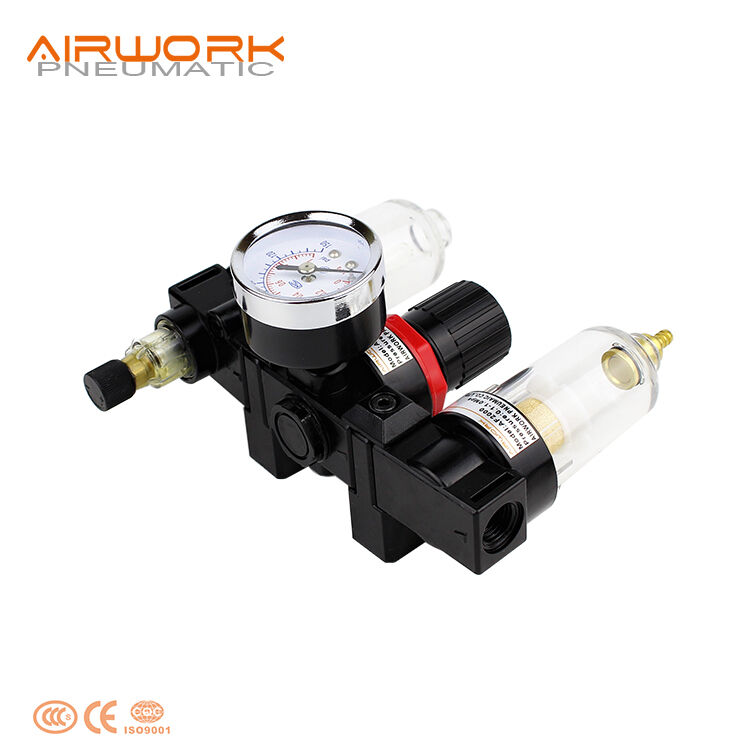

AC Series FRL Air Combination
AC Series FRL Air Combination is a component that works by the force produced by the pressure or expansion of the air, which converts the elastic energy of compressed air into kinetic energy. Such as cylinder, pneumatic motor, steam engine, etc. The air source processor is used in automation production of metallurgical machinery, construction machinery, transportation equipment, household appliances, light industry, machine tools, medical and other industries.
- Overview
- Recommended Products
Product Feature
1.The structure is delicate and compact, which is convenient for installation andapplication.
2.The pressed-in self-locking mechanism can prevent the abnormal movementof the set pressure caused by external interfere.
3.The pressure loss is low and the efficiency of water separating is high.
4.The quantity of oil dripping can be directly observed through transparentcheck-dome.
5.In addition to standard type, lower pressure type is optional(The highestadjustable pressure is 0.4MPa).
Specification：
Model |
AC1500 |
AC2000 |
BC2000 |
BC3000 |
BC4000 |
|
Fluid |
Air |
|||||
Port size |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT1/2 |
|
Filtering grade |
40um or 5um |
|||||
Pressure range |
semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) |
|||||
Max. pressure |
1.0MPa(145Psi) |
|||||
Proof pressure |
1.5MPa(215Psi) |
|||||
Temperature range |
-5~70C(unfreeze) |
|||||
capacity of drain bowl |
15CC |
40CC |
90CC |
|||
Capacity of oil bowl |
25CC |
60CC |
90CC |
|||
Recommended lubricant |
ISO VG 32 or equivalent |
|||||
Constitute |
Filter |
AF1500 |
AF2000 |
BF2000 |
BF3000 |
BF4000 |
Regulator |
AR1500 |
AR2000 |
BR2000 |
BR3000 |
BR4000 |
|
Lubricator |
AL1500 |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
|
Installation and Usage
1.Check whether the components have been damaged during transportation before installing and using.
2.Pay attention to whether the flow direction of air (notice "-” direction) and thread type are correct
3.Please notice whether installation condition accords with technical requirements (such as "working pressure" and "applied temperature range")
4.The medium used or installation environment shall be noticed. The matters with chlorine carbon compound, aromatic compound and oxidizing acid and alkali shall be avoided to prevent the damage of bowl and oil bowl.
5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.
6.Keep dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.
