CDM2B Series Stainless Steel Mini Pneumatic Cylinder

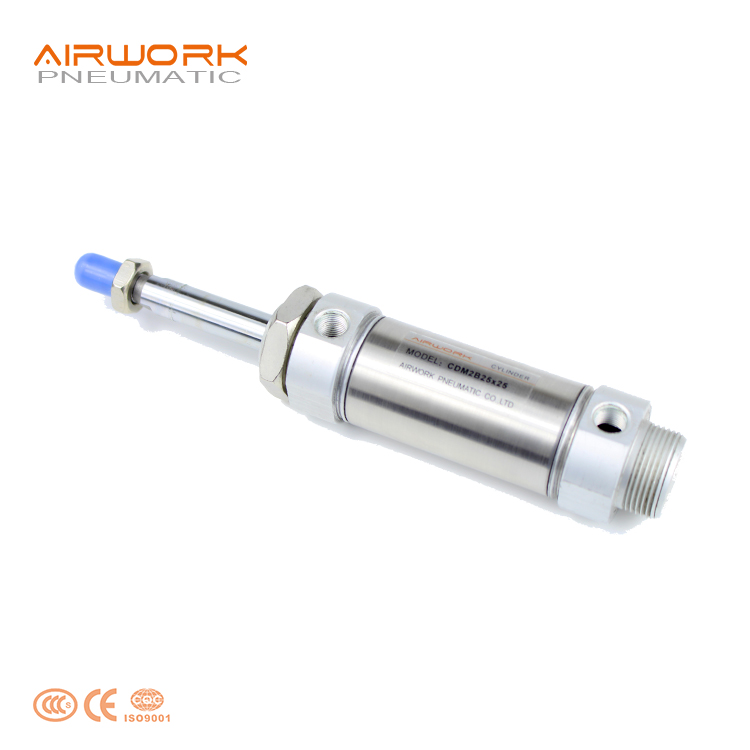

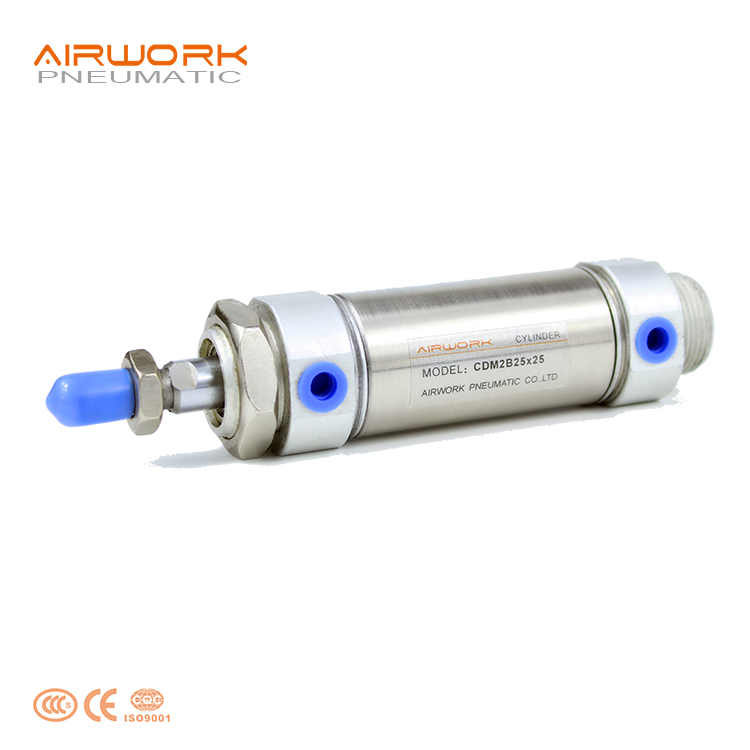

The CDM2B series is a high-performance mini pneumatic cylinder featuring a 304 stainless steel barrel for exceptional corrosion resistance. Its compact round-body design and high-speed capability make it the industry standard for small-scale automation and precision machinery.
- Overview
- Recommended Products
Product Detailed Description：

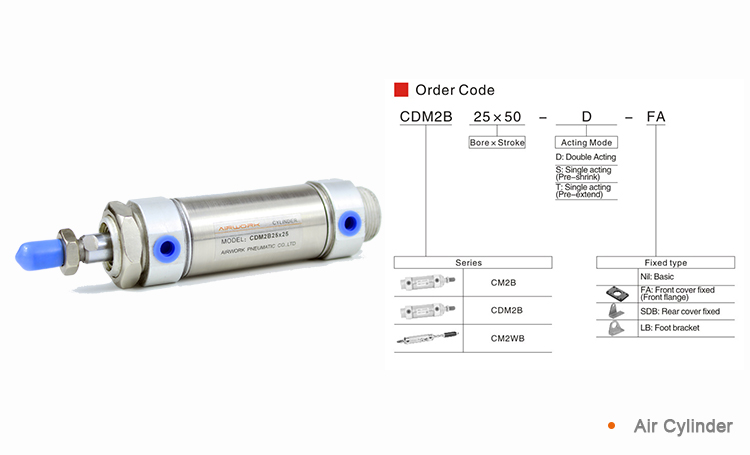

Our CDM2B Series (SMC Type Interchangeable) is engineered for durability and precision. The cylinder utilizes a high-strength stainless steel tube combined with anodized aluminum end caps, ensuring a lightweight yet rugged construction. The "D" in CDM2B signifies a built-in magnetic ring, allowing for seamless integration with auto-switches for position sensing. Available in bore sizes from 20mm to 40mm, this series offers multiple tail configurations (Basic type B or Flat tail type U) and mounting options (Flange, Foot, or Pivot) to fit any tight-space application.
Product Feature :
1. Superior Corrosion Resistance: The 304 stainless steel barrel is ideal for humid or mildly corrosive industrial environments.
2. High-Speed Performance: Capable of reaching speeds up to 750 mm/s, significantly improving machine cycle times.
3. Compact Round Design: The small footprint allows for installation in narrow spaces where square-body cylinders cannot fit.
4. Auto-Switch Compatible: Integrated magnetic ring (CDM2B) allows for easy mounting of proximity sensors on the barrel.
5. Long Service Life: High-quality NBR seals and precision-ground piston rods ensure millions of trouble-free cycles.

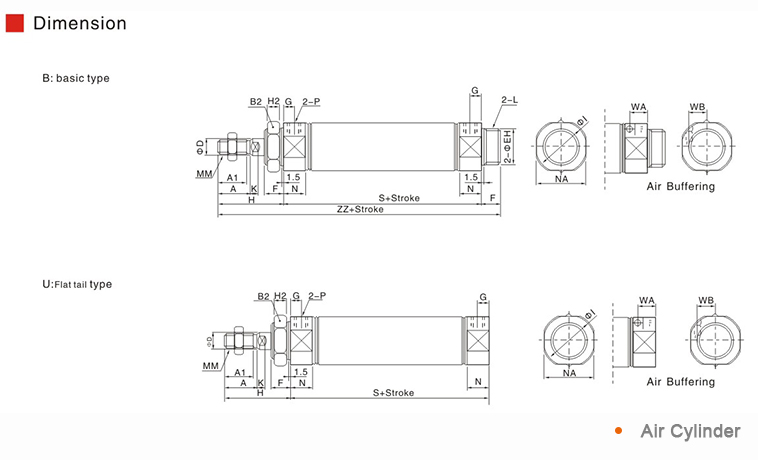

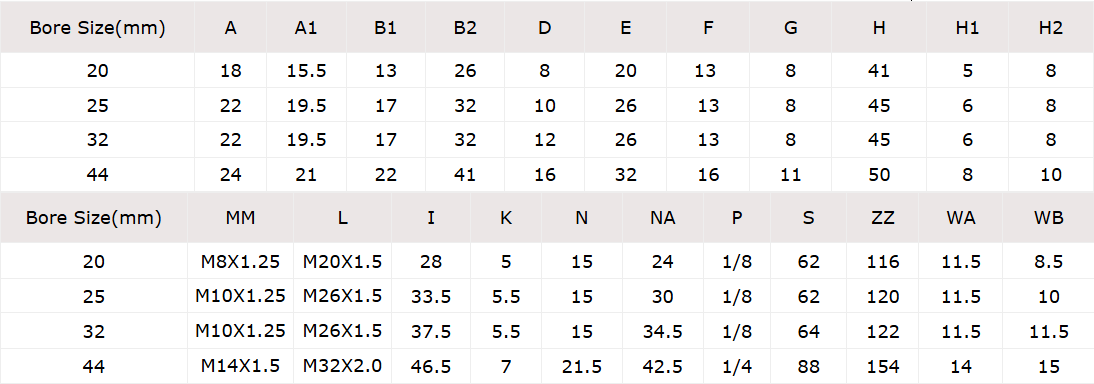

Specification：
| Series | CM2B (Standard) / CDM2B (Built-in Magnet) |
| Bore Size | Ø20, 25, 32, 40 mm |
| Action Mode | Double Acting / Single Acting (Spring Return/Extend) |
| Fluid | Compressed Air |
| Proof Pressure | 1.5 MPa |
| Max. Operating Pressure | 1.0 MPa (10 bar) |
| Min. Operating Pressure | 0.05 MPa |
| Ambient & Fluid Temp. | -10 to +70°C (No freezing) |
| Piston Speed | 50 to 750 mm/s |
| Cushion Type | Rubber Bumper (Std) / Adjustable Air Cushion (Optional) |
| Barrel Material | 304 Stainless Steel |
Application：
1. Food & Beverage Packaging：
Due to the stainless steel construction, the CDM2B excels in packaging lines that require frequent wash-downs. It is widely used for pushing, capping, and sorting tasks where hygiene and rust prevention are paramount.
2. Electronics & Semiconductor Assembly：
Its compact size and high-speed actuation make it perfect for pick-and-place modules, PCB testing fixtures, and small-part feeding systems where space is extremely limited and precision is required.
3. Textile & Labeling Machinery：
In high-frequency environments like weaving or automatic labeling, the CDM2B provides the reliable, rapid-fire response needed for tension control and applicator arm movements.
Installation and Usage：
1. Piping Prep: Before connecting, flush all air lines to remove dust or tape fragments.
2. Mounting Tension: Do not over-tighten the mounting nut on the threaded nose; follow the torque specs to avoid distorting the barrel.
3. Load Alignment: Ensure the load is aligned with the piston rod axis. Side loads will cause rapid wear on the rod bushing and seals.
4. Speed Adjustment: Use speed controllers (flow control valves) to prevent the piston from hitting the end caps at full force, even if it has rubber bumpers.
