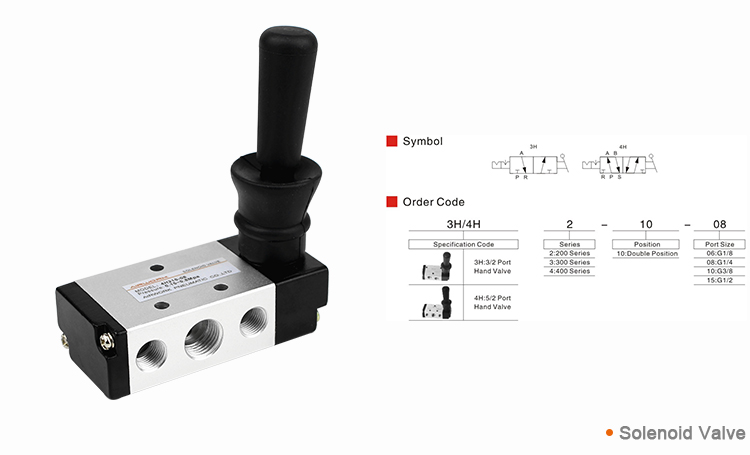

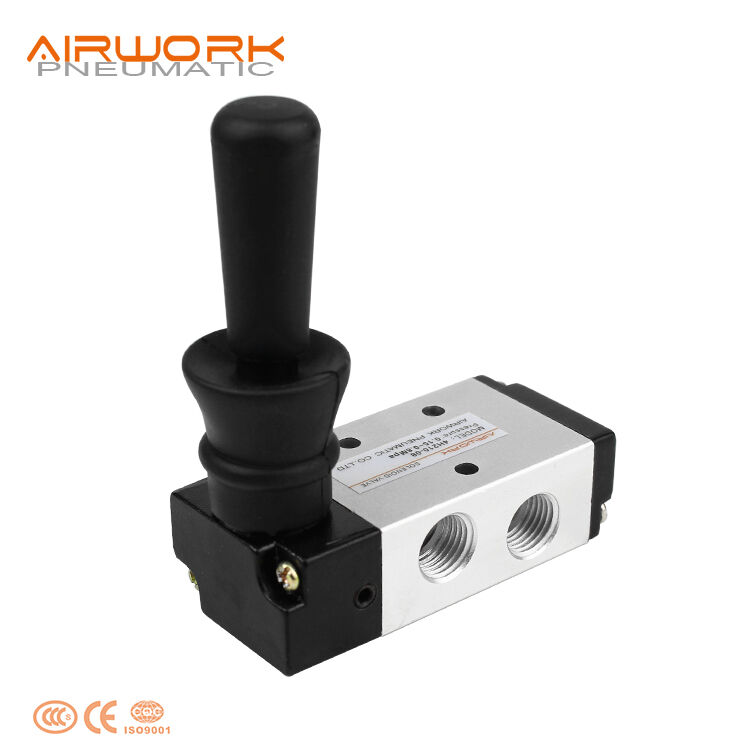

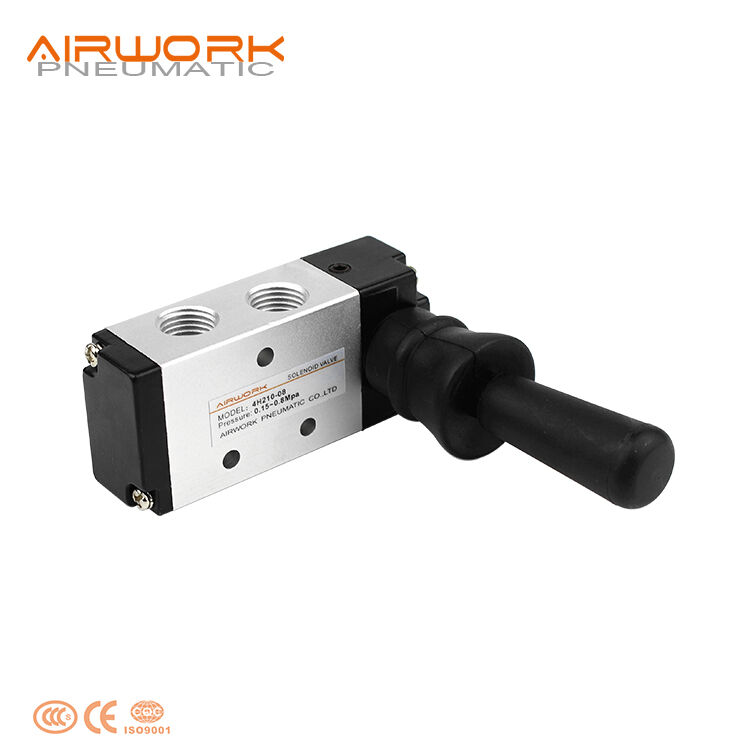

4H series hand lever valve（5/2 way, 5/3 way）
4H series hand lever valve is a widely used pneumatic control component. It adopts manual operation with smooth movement and accurate, reliable positioning. Featuring a spool-type structure, it boasts excellent sealing performance, compact size, light weight and easy assembly/disassembly. The inner bore is processed with special technology, resulting in low friction resistance and an extended service life. It supports panel mounting for hassle-free installation and requires no lubrication during operation.
- Overview
- Recommended Products
Application Fields
It is suitable for various scenarios including building material stores, manufacturing plants, mechanical repair shops, household use, energy and mining industries, etc. It can be used to control the start-stop and reversing actions of pneumatic equipment.
Product feature
1.Manual operation,smooth actuation, and exact and reliable orientation.
2.Sliding column structure has good tightness and light weight and is easy to install anddismount.
3. Internal hole adopts special processing technology which has little attrition friction, longservice life.
4.No need to add oil for lubrication.
5.Panel-mounting makes it convenient to install and apply.
Specification
Model |
210-06 |
230-06 |
210-08 |
230-08 |
310-08 |
330-08 |
310-10 |
330-10 |
Fluid |
Air (to be filtered by 40 um filter element) |
|||||||
Operating |
Air (to be filtered by 40 um filter element) |
|||||||
Port size |
ln=Out=Exhaust=1/8" |
In=Out=1/4”;Exhaust=1/8" |
In=Out=Exhaust=1/4" |
In=Out=3/8";Exhaust=1/4” |
||||
Orifice size |
4H210-08:17.0mm(Cv=1.0) 4H230C-08:13.6mm(Cv=o.8) |
4H230C-08:13.6mm(Cv=o.8) 4H330C-10:21.3mm(Cv=1.25) |
||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
Lubrication |
Not required |
|||||||
Pressure range |
0~1.0MPa(0~145psi) |
|||||||
Proof pressure |
1.5MPa(215psi) |
|||||||
Temperature |
-20~70℃ |
|||||||
Material of body |
Aluminum alloy |
|||||||
Operating angle |
±15° |
±8.5° |
±15° |
±8.5° |
±18° |
±10° |
±18° |
±10° |

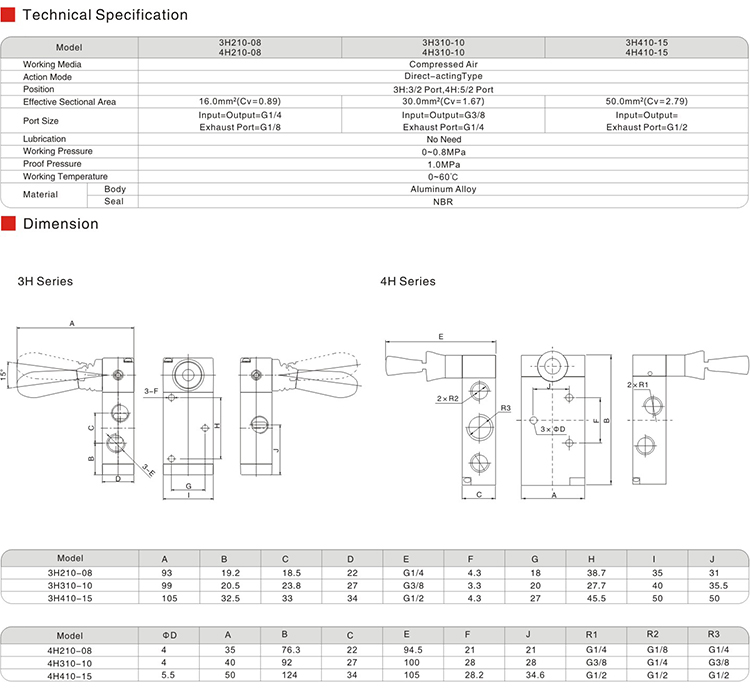

lnstallation
1.5/3 way manual return hand lever valve is positioned by steel ball, which is convenient to switch.Please apply the proper force to avoidthe position mismatch and misoperation.
2.When installed by panel, disassemble the gasket according to thepractical requirement.
3.Below is the installation method for reference.
Note: Please give your attention on the panel thickness and hole dimension when installed by panel.
