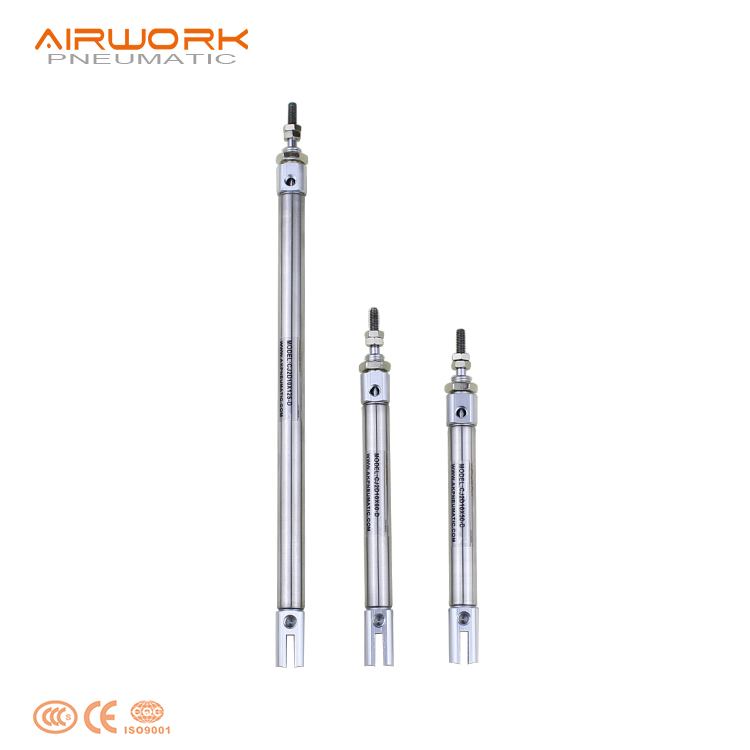

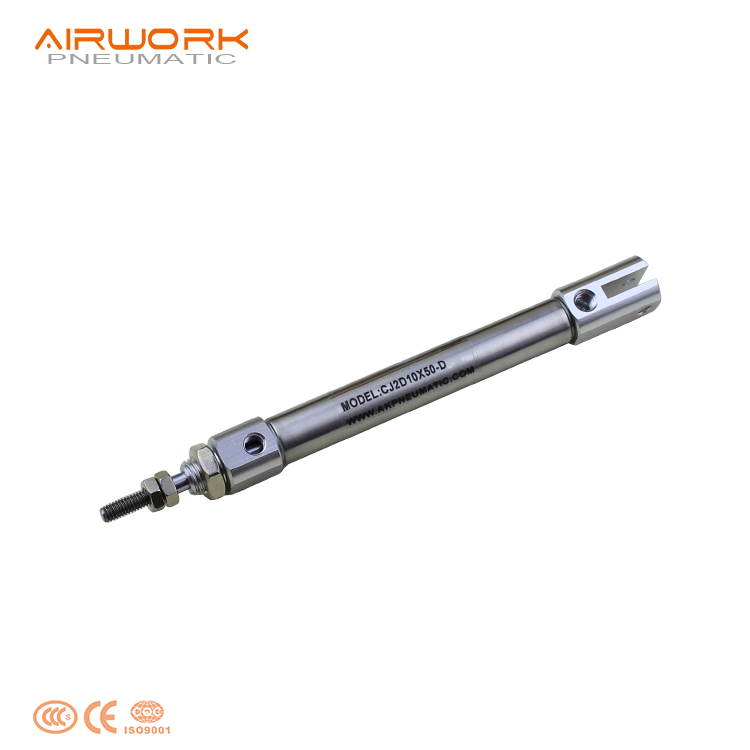

CDJ2D Series Miniature Stainless Steel Air Cylinder
The CDJ2D series is a premium miniature air cylinder featuring a corrosion-resistant stainless steel body and a built-in magnet for precise position sensing. Optimized for high-speed, space-limited automation, it offers a pressure range of 0.1-0.7 MPa and is fully interchangeable with standard SMC CJ2 series components. Ideal for electronic assembly and precision medical equipment.
- Overview
- Recommended Products
Product Detailed Description：
The CDJ2D Series Miniature Air Cylinder is a high-precision, double-acting pneumatic actuator designed for ultra-compact automation environments. Featuring a premium SS304 stainless steel barrel and a built-in magnetic ring for auto-switch sensing, this cylinder offers exceptional durability and corrosion resistance.
Engineered to be 100% interchangeable with SMC CJ2D series, it is the go-to solution for engineers seeking reliable linear motion in electronics manufacturing, medical devices, and precision laboratory equipment.
Product Feature:
1. Premium Stainless Steel Construction: The cylinder body is crafted from high-grade stainless steel, ensuring excellent durability and resistance to oxidation in humid environments.
2. Built-in Magnetic Ring: Standard magnetic piston (CDJ2 series) allows for seamless integration with auto-switches for intelligent position feedback.
3. Ultra-Compact & Lightweight: Designed with bore sizes as small as 6mm, making it the perfect solution for micro-automation and compact machinery.
4. Precision Engineering: High-quality seals provide a low startup pressure (0.1 MPa) and support operating speeds up to 750 mm/s.
5. Universal Compatibility: Manufactured to strict SMC standards, ensuring direct replacement for existing systems without modifying mounting brackets.

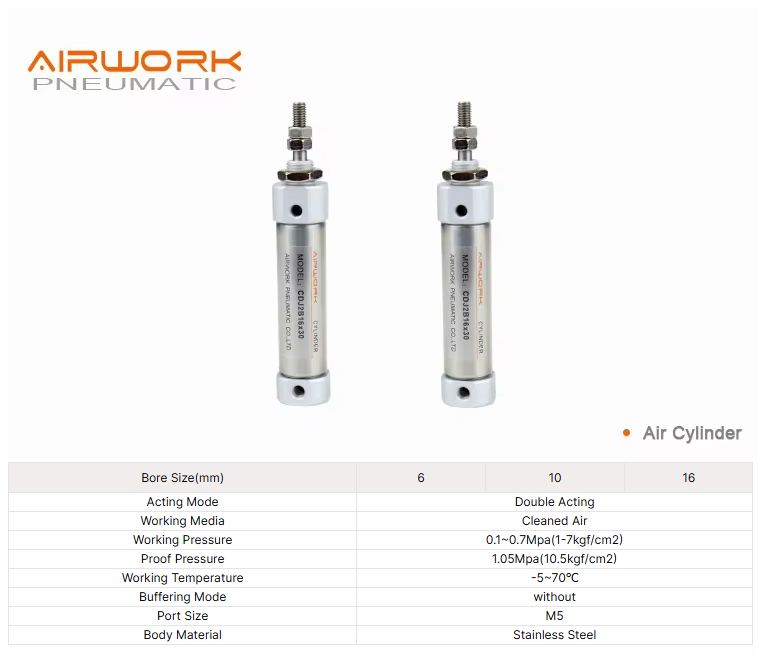

Specification：
Series |
CDJ2D (Built-in Magnet) |
Bore Size |
Ø6, 10, 16mm |
Action Mode |
Double Acting (Single Rod) |
Working Media |
Cleaned Air |
Working Pressure |
0.1 ~ 0.7 MPa (1.0 ~ 7.0 kgf/cm²) |
Proof Pressure |
1.05 MPa (10.5 kgf/cm²) |
Working Temperature |
-5°C ~ 70°C |
Buffering Mode |
Rubber Bumper (Without adjustable cushion) |
Port Size |
M5 × 0.8 |
Body Material |
High-Grade Stainless Steel |
1. Electronics and Semiconductor Manufacturing：
With ultra-slim bore sizes ranging from 6mm to 16mm, this series facilitates high-density mounting in robotic grippers and PCB assembly lines. It is an essential component for delicate pick-and-place operations, where millimeter-level accuracy and a minimal footprint are critical for handling sensitive micro-components efficiently without damaging fragile parts.
2. Medical and Laboratory Automation：
The SS304 stainless steel construction provides superior corrosion resistance and meets strict hygiene standards required for cleanroom environments. This makes it ideal for diagnostic equipment, reagent sampling systems, and automated liquid handling. Its reliable magnetic-sensing capabilities ensure consistent, high-precision performance in critical medical diagnostic workflows.
3. High-Speed Packaging and Sorting：
Modern packaging systems leverage the cylinder’s low-friction seals and rapid response times. The CDJ2D excels in repetitive labeling, sorting, and orientation tasks. Its durable design and integrated rubber bumpers minimize impact stress, ensuring long-term operational efficiency in compact, high-throughput environments where space optimization is paramount.
Installation and Usage：
1. Alignment: Use the integrated M5 ports for air connection. Ensure the load is strictly axial to avoid bending moments on the miniature piston rod.

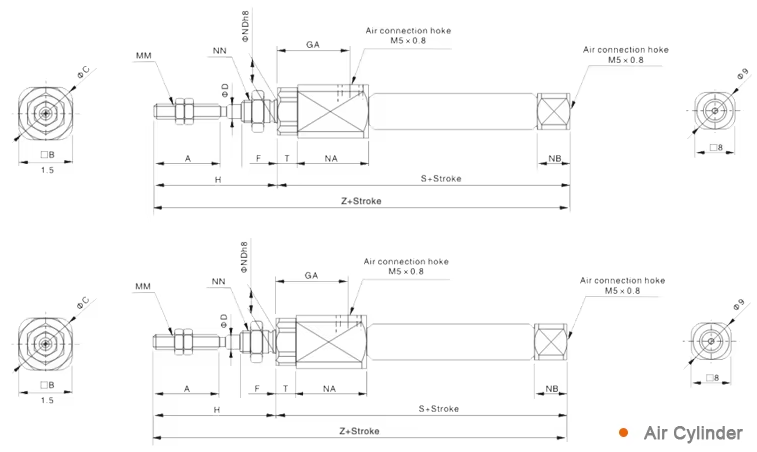

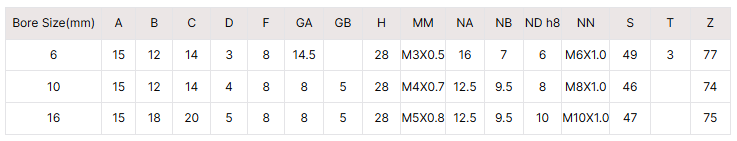

2. Mounting Options: Compatible with Basic (B), Foot (L), Flange (F), and Double Clevis (D) mountings. Refer to the dimension table (Z+Stroke) for precise layout.
3. Speed Regulation: Always use speed controllers (flow control valves) at the ports to prevent the piston from striking the end covers too forcefully, as this series uses rubber bumpers.
4. Magnetic Sensors: Slide auto-switches into the mounting rail/band to detect the piston's magnet for automated sequence control.
FAQ
Q1. What is the maximum stroke for the 6mm bore CDJ2D?
A1. Standard strokes go up to 60mm for the 6mm bore, while 10mm and 16mm bores can support longer strokes up to 200mm.
Q2. Does CDJ2D come with the magnet included?
A2. Yes, the "CDJ2" designation indicates it includes a built-in magnetic ring. The "CJ2" version is the non-magnetic equivalent.
Q3. Can this cylinder handle high-pressure environments?
A3. The maximum working pressure is 0.7 MPa. It has been proof-tested at 1.05 MPa to ensure safety under intermittent surges.
Q4.Is the piston rod stainless steel as well?
A4.Standard models feature high-carbon steel rods with hard chrome plating. Stainless steel rods (SUS304) can be customized for food-grade or high-corrosion apps.
Q5. What type of air fitting do I need?
A5.All bore sizes (6, 10, 16) in this series use standard M5 × 0.8 threaded ports.

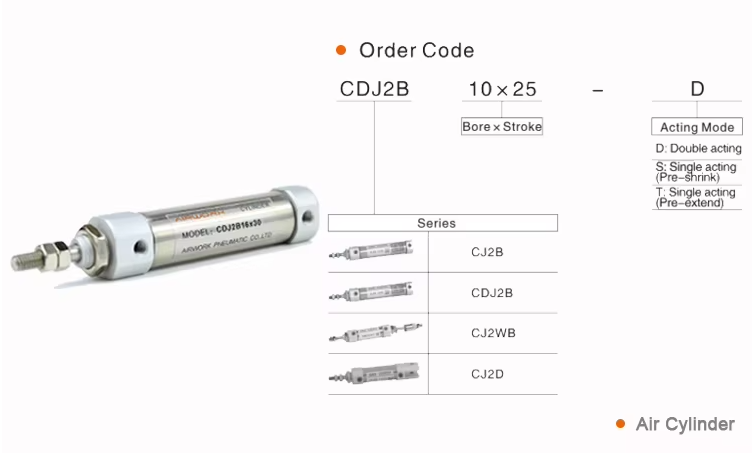

Q6.What does the "D" in CDJ2D stand for?
A6. According to the order code logic, "D" represents the Double Acting mode. We also offer "S" (Single acting pre-shrink) and "T" (Single acting pre-extend) variants.
Q7. Is lubrication required during operation?
A7.This series is designed for "non-lube" operation as it is pre-greased. If you use a lubricator, ensure it remains in use throughout the life of the cylinder.
Q8. Are the dimensions 100% identical to the SMC CJ2 series?
A8.Yes, our CDJ2 series follows the same mounting dimensions (A, B, H, Z+Stroke), allowing for direct drop-in replacement.
