PU Polyurethane tube
Pneumatic tubing is used when compressed air is to be supplied to the point of consumption. Which tube is the right one depends on the area of application and the individual requirements. It is important that the tubing is maintained regularly so that defects can be ruled out and the longevity and functionality of the pneumatic application is not jeopardised. AIRWORK pneumatic tubing is just as reliable at meeting standard requirements as it is at operating in extreme conditions such as heat, welding spatter, high pH values or hydrolysis resistance.
- Overview
- Recommended Products

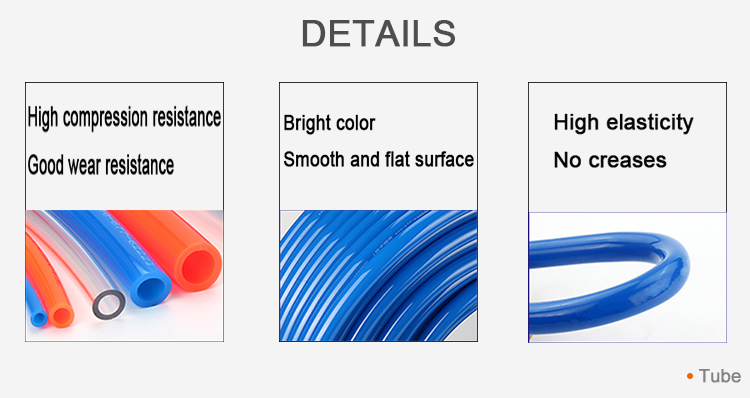

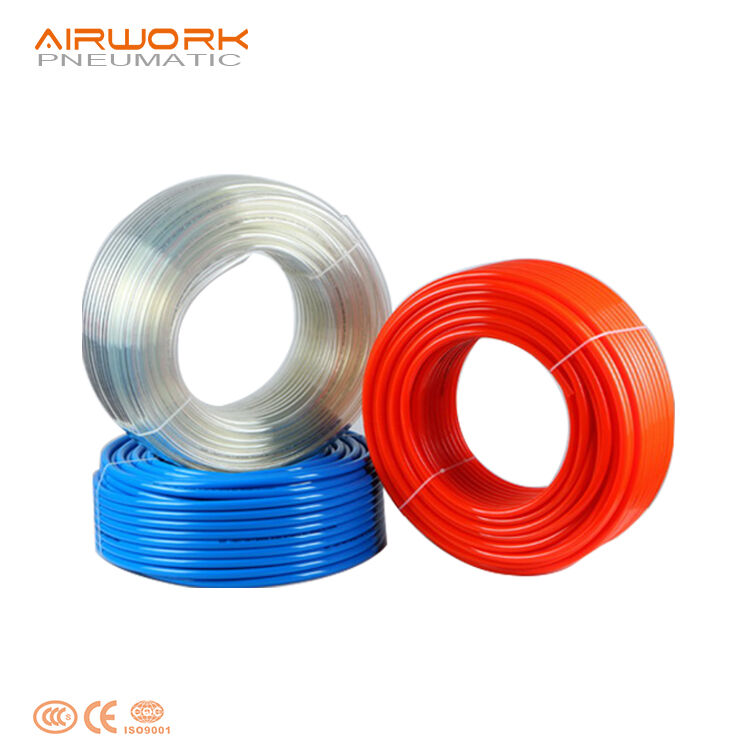

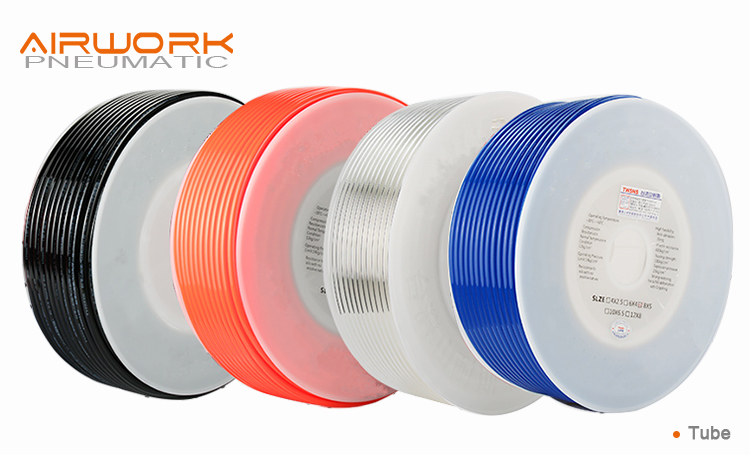

Pneumatic tubing made of polyurethane (or PU) is the first choice when pneumatic control systems have to be connected. It is available in numerous sizes and is characterised by its flexibility and small bending radii. PU pneumatic tubing is available in many different colours, which is practical for keeping track of the individual lines when installing tubing for complex control systems. It meets numerous requirements thanks to its different special properties: they are spatter-proof, flame-retardant and electrically conductive.
Technical Specification
Model |
APU4x2.5 |
APU6x4 |
APU8x5 |
APU10x6.5 |
APU12x8 |
APU12x10 |
APU14x10 |
APU16x12 |
Working Media |
Air.Water.Noncorrosive Oil |
|||||||
Max. Working Pressure |
0~12 |
0~10 |
0~8 |
|||||
Ambient Temperature |
-20~+60 |
|||||||

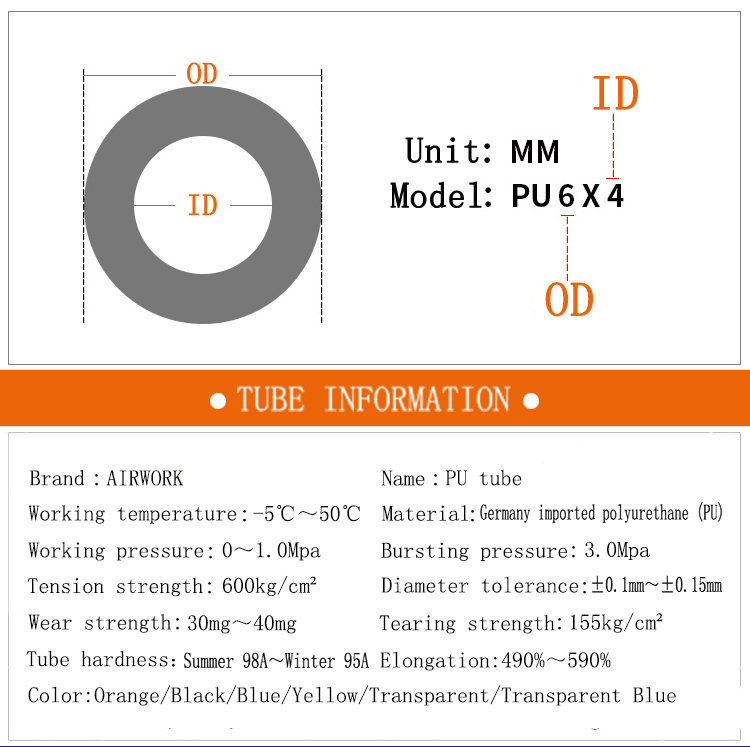

Tube O.D |
4 |
6 |
8 |
10 |
12 |
12 |
14 |
16 |
Tube l.D |
2.5 |
4 |
5 |
6.5 |
8 |
10 |
10 |
12 |
Standard Length(m) |
200 |
200 |
100 |
100 |
100 |
100 |
100 |
100 |
Min.Bending Radius |
12 |
15 |
20 |
25 |
37 |
37 |
56 |
60 |
Broken Pressure(kgf/cm2] |
30 |
35 |
40 |
30 |
30 |
24 |
20 |
20 |
