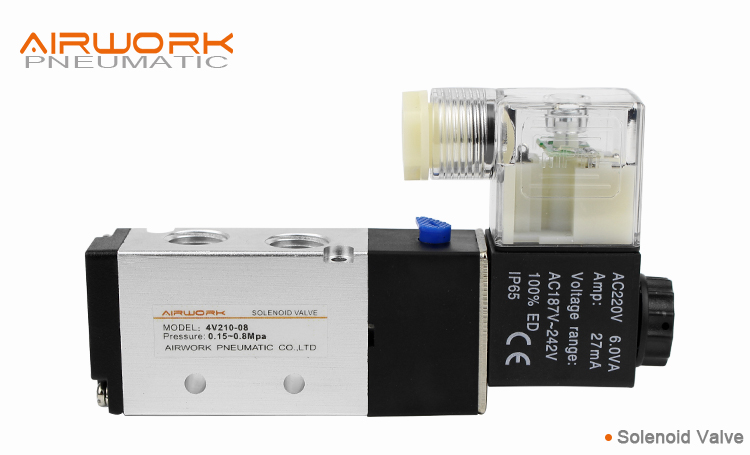

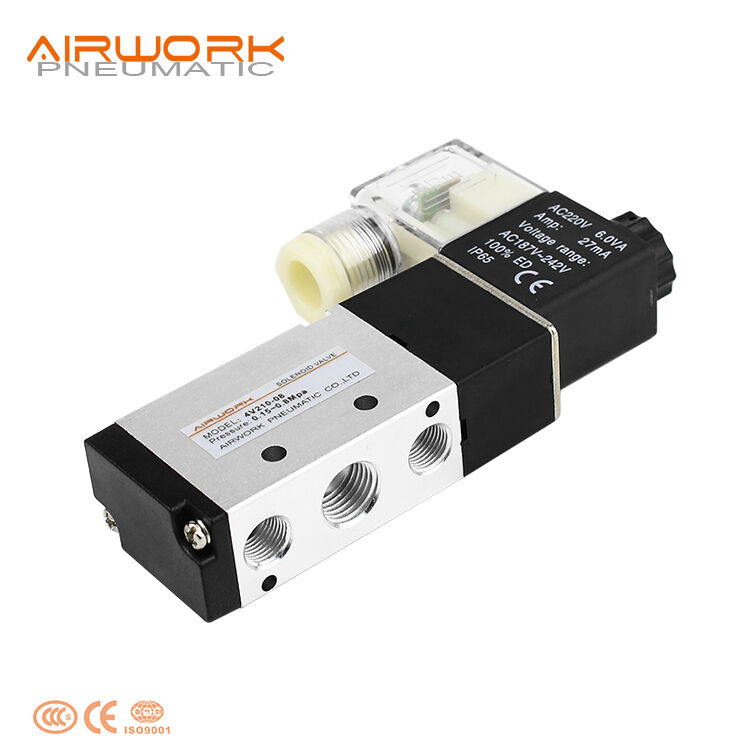

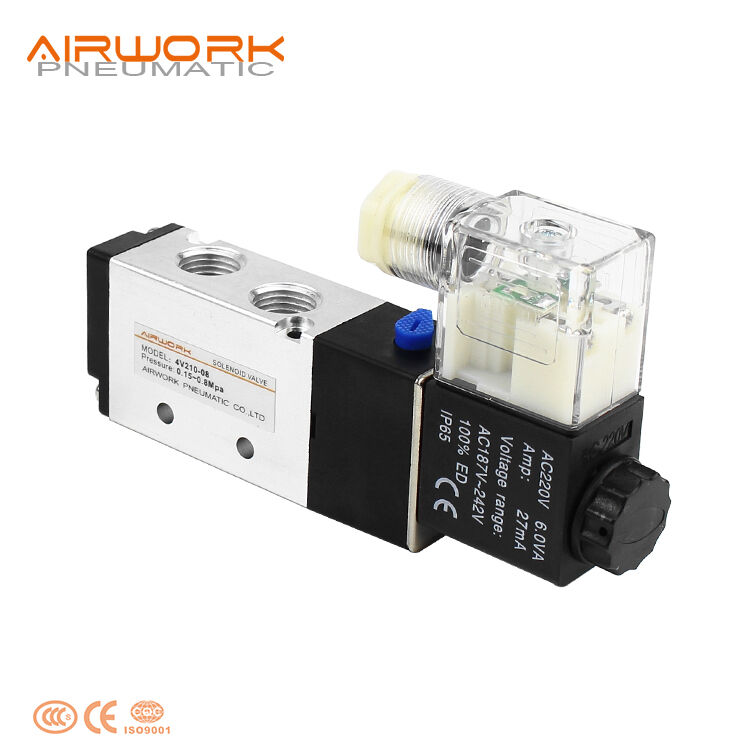

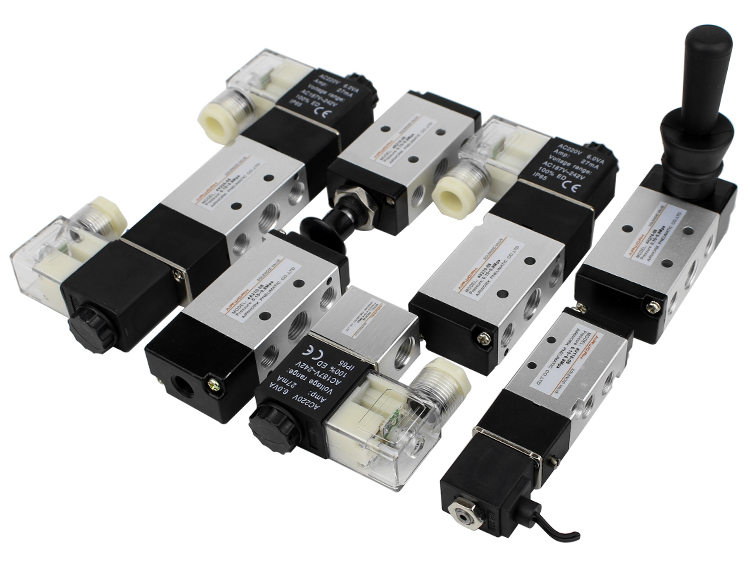

5/2way, 5/3way Solenoid Valve
A directional control valve is used to change, open or block the flow of a medium in a pneumatic system. Compressed air is the fluid that is normally used in pneumatic actuators. The valves differ in terms of the design of their control element, the number of switching positions and flow paths as well as the type of actuation. There are mechanically, pneumatically or electrically operated directional control valves.
- Overview
- Recommended Products
Product feature
1. Pilot-oriented mode:Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3.Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6.No need to add oil for lubrication.
7.It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.

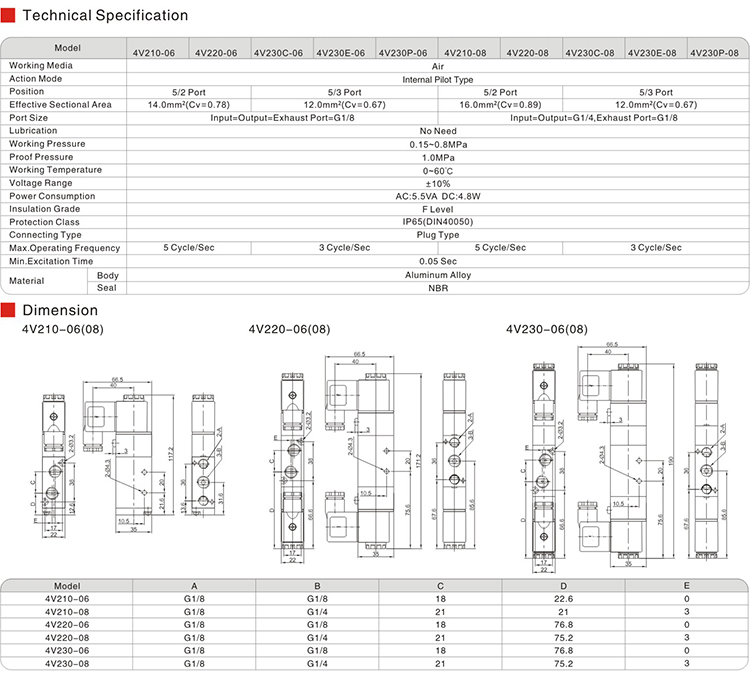

Specification
Model |
4V210-06 4V220-06 |
4V230-06 |
4V210-08 4V220-08 |
4V230-08 |
Fluid |
Air(to be filtered by 4Oum filter element) |
|||
Acting |
Internal pilot or external pilot |
|||
Port size |
In=Out=Exhaust=1/8" |
In=Out=1/4"Exhaust=1/8" |
||
Orifice size(Cv) |
4V210-08,4V220-08:17.0mm(Cv=1.0) 4V230C-08:13.6mm(Cv=0.8) |
|||
Valve type |
5 port 2 position |
5 port 3 position |
5 port 2 position |
5 port 3 position |
Operating pressure |
0.15~0.8MPa(21~114psi) |
|||
Proof pressure |
1.2MPa(175psi) |
|||
Temperature |
-20~70℃ |
|||
Material of body |
Aluminum alloy |
|||
Lubrication |
Not required |
|||
Max.frequency |
5 cycle/sec |
3 cycle/sec |
5 cycle/sec |
3 cycle/sec |
Weight (g) |
4V220-06:320 4V210-06:220 |
360 |
4V210-08:220 4V220-08:320 |
360 |
Coil specification
Item |
Specification |
||||
Standard voltage |
AC220V |
AC110V |
AC24V |
DC24V |
DC12V |
Scope of voltage |
AC:±15% DC:±10% |
||||
Power consumption |
4.5VA |
4.5VA |
5.0VA |
3.0W |
2.5W |
Protection |
IP65(DIN40050) |
||||
Temperature classification |
B Class |
||||
Electrical entry |
Terminal, Grommet |
||||
Activating time |
0.05 secand below |
||||
Installation and usage
1. Before installing, be sure the valve hasn't been damaged via transportation
2. It's suggested to use the medium lubricated by 40um filter element. Be aware of the flow direction and port size
3. Please notice whether the installation condition accords with technical requirements (such as "voltage”, “actuation frequency", "working pressure” and scope of application temperature"), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A(B) is the work port and R(S) is the exhaust outlet
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly
7. To keep the dust away, please use the silencer for the exhaust ports.Never forget to install dirt-proof boot in air intake and outlet during dismounting
8.After installing, please use the manual override to test valve first.
