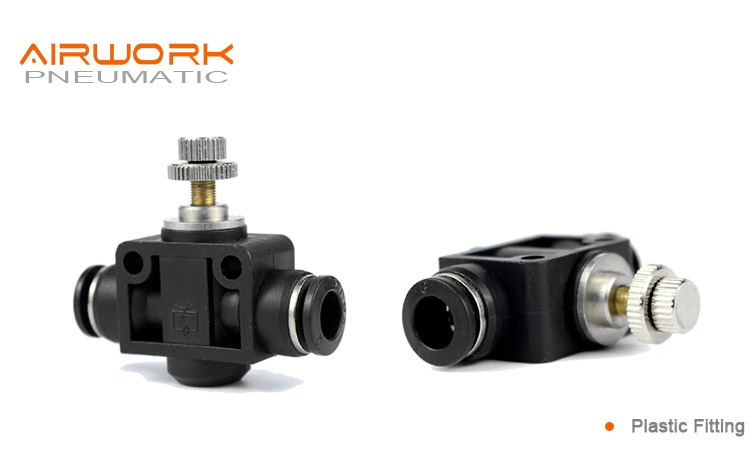

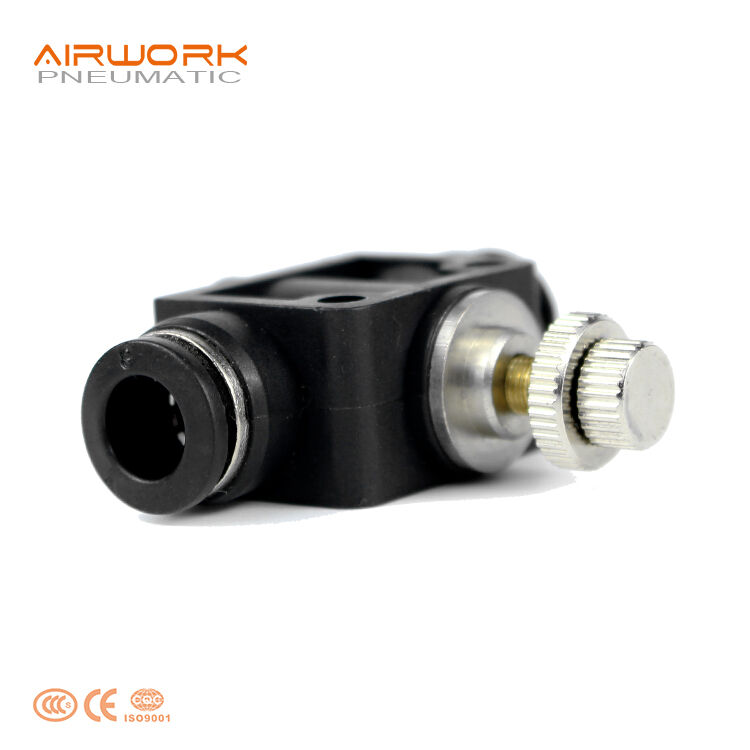

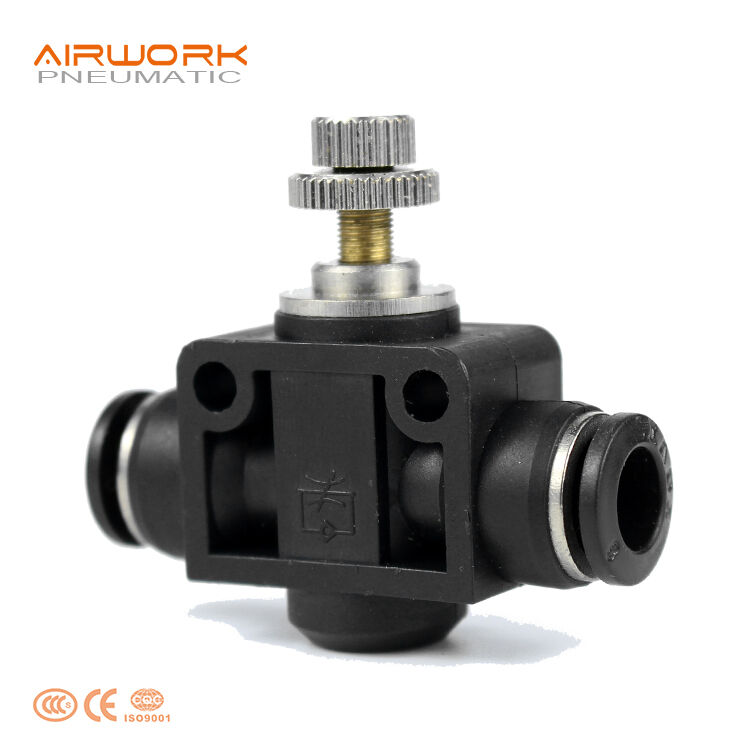

Straight Speed Controller
Speed Controllers are called Flow regulators or flow control valves or flow regulators (also called flow-through valve or throttle valve). These valves are used to regulate the flow rate of the medium used. Flow control valves are used in hydraulics and pneumatics to regulate the flow of hydraulic fluid or compressed air.
- Overview
- Recommended Products
One-way flow control valves
With one-way flow control valves, the flow in one direction is restricted, and is free in the other. One-way flow control valves are used to adjust the speed of pneumatic cylinders, while flow control valves, on the other hand, are used to adjust the flow of air or a fluid.

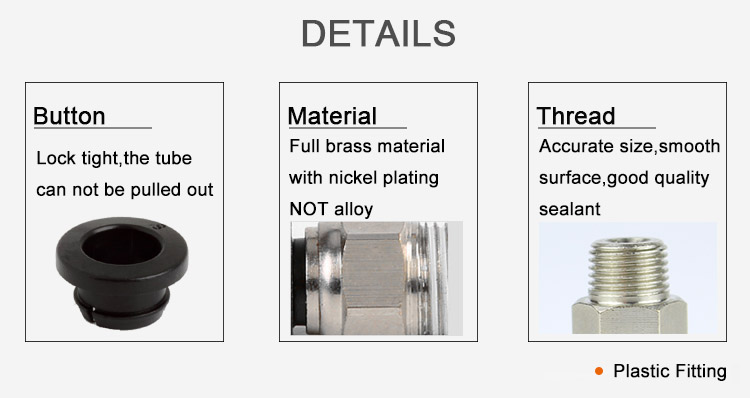

Product feature
1. The silencer is small size, and light weight with small installation space.
2. Excellent flow charatentics, high sensitivity and easy to adjust.
3.The silencer brass body adopts a special nickel-plating process, which has good corrosion resistance and anti-pollution property.
4.Anti-drop structure is designed on the regulating rod.
5.The sealant being coated on threaded portion can ensure no leakage of the threaded connection part.
6. The inserting direction of universal speed controller can be adjusted in 360

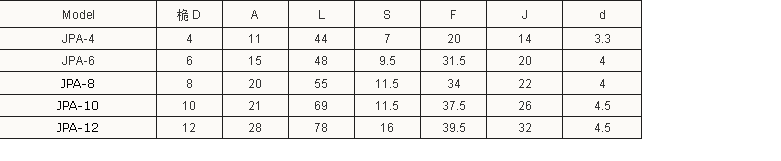

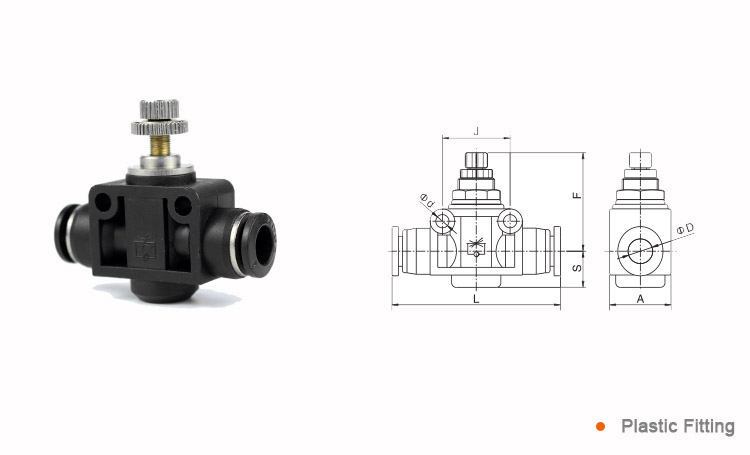

Specification
Operating pressure range |
0~10kgf/cm(0~1.0MPa) |
Negative pressure |
-750mmHg(10Torr) |
Proof pressure |
1.5MPa |
Ambient and fluid temperature (℃) |
-20~70 |

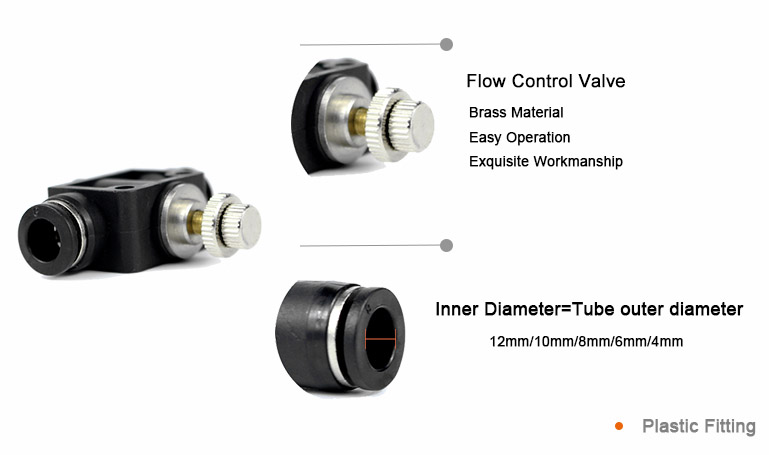

Applicable tubing |
Soft nylon or polyurethane |
Color |
Grey/black/white |
Installation

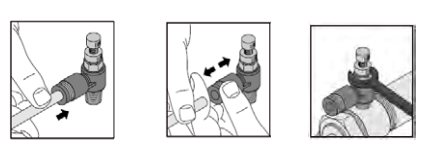

1.Installation and removal of tubing
1.1.Installation of tubing
Grasp the tubing and slowly push it into the fitting until it comes to a stop.The tubing will be locked by the spring gasket.
1.2.Removaloftubing
Push the release button to open the spring gasket so that the tubing can be released.
Note:When remove the tubing.make sure the pressure in the tubing is Zero.
2.Mounting of the speed controlle
Mount the speed controller into the inlet and outlet port of the cylinder with a wrench.
Note: Please refer to the fittings for the tightening torque and thread screw-in depth.
Operation
1. Adjustment of the cylinder speed
1.1. Make sure the speed controller is turned off before applying air pressure.The cylinder may fly out due to the high speed if the air is inlet when the
speed controller is turned on

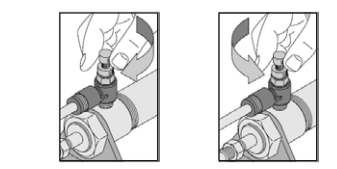

1.2. Adjust the speed by opening the needle slowly from the fully closed state. When a needle valve is turned clockwise, the air flow through is reduced and
the actuator speed decreases. When a needle valve is turned counter-clockwise,the air flowthrough is increased and the actuator speed increases.
