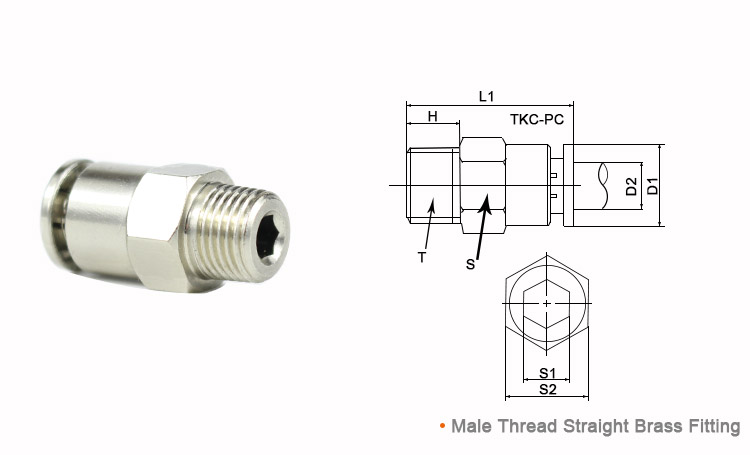

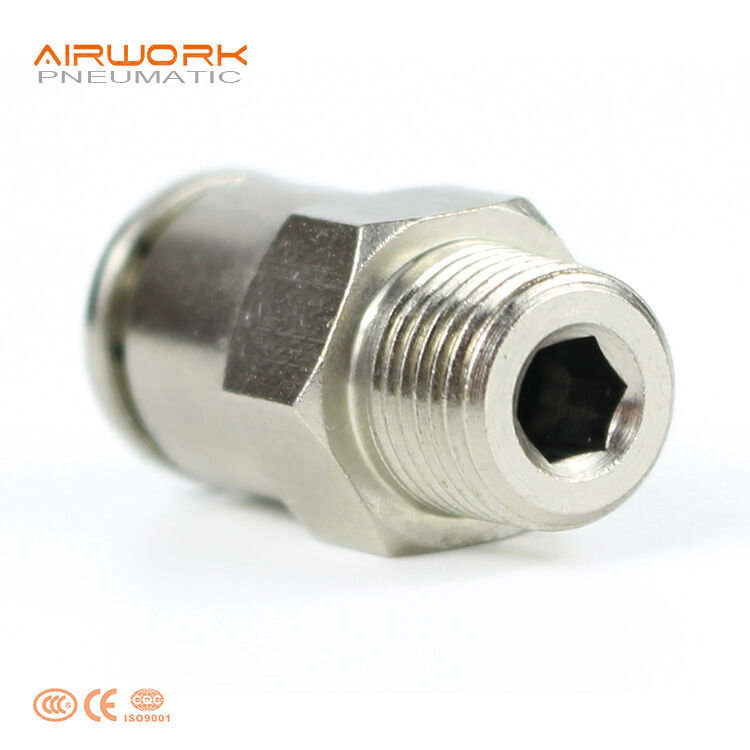

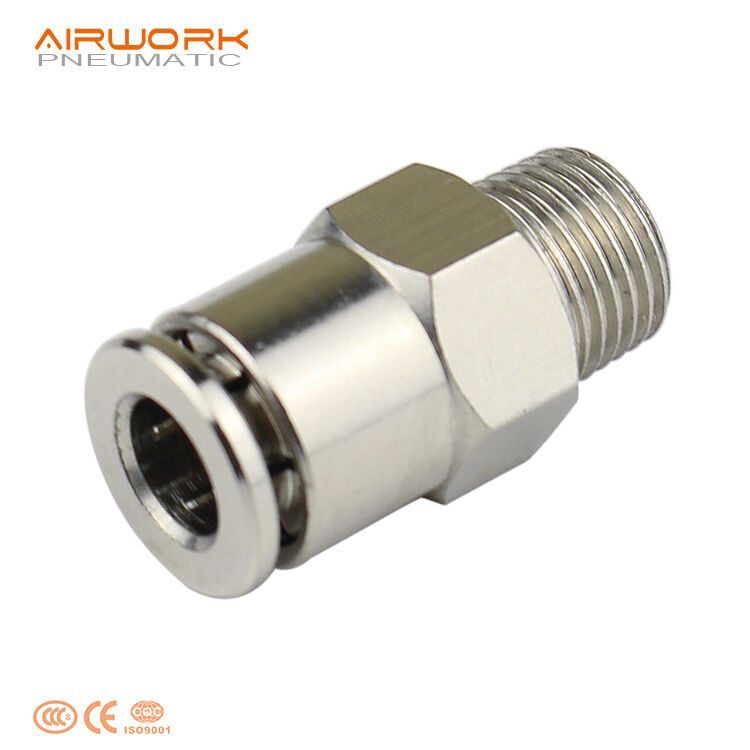

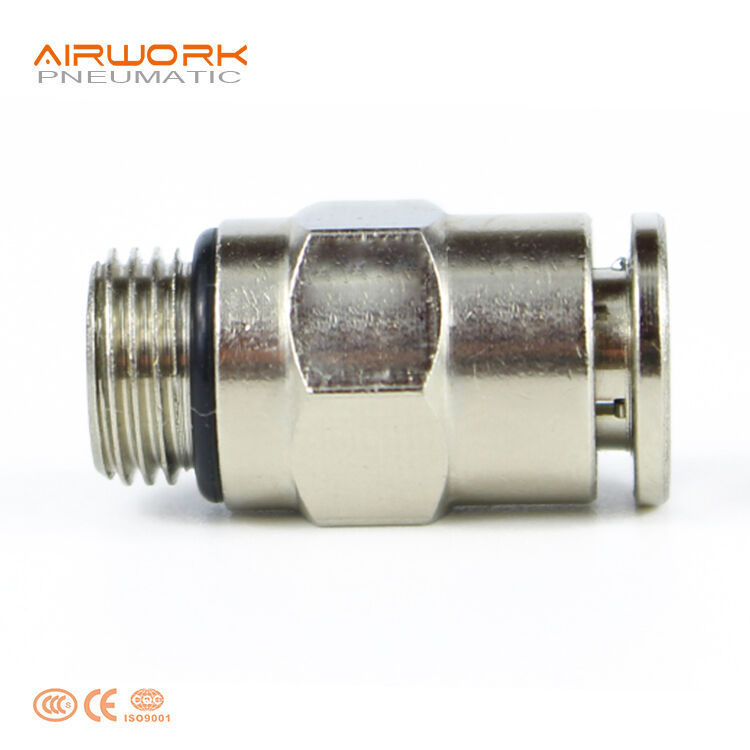

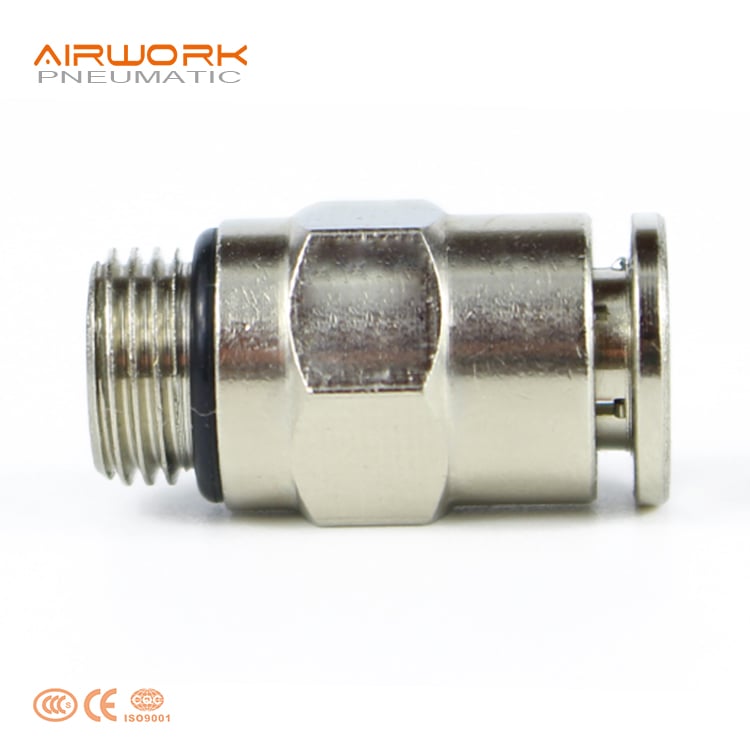

Brass Male Straight Push-in Fittings (One-Touch fittings)
Tube external diameters: 3, 4, 5, 6, 8, 10, 12, 14, 16 mm

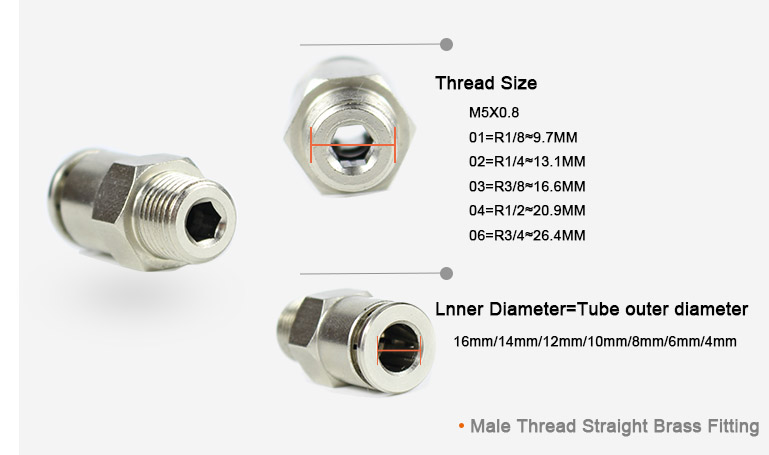

Fittings threads: metric (M3, M5, M6, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4), BSPT (R1/8, R1/4, R3/8, R1/2)
Brass Male Straight Push-in Fittings (One-Touch fittings) with nickel plates are used widely in pneumatic tubing system. Pneumatic quick connect push in air fittings are widely accepted because compression fitting consumes certain manpower and time in the product assembly, the maintenance, increases the labor cost in the product cost expenditure.
- Overview
- Recommended Products
Product Feature
1. High flow capacity; The flow rate of these fittings is equivalent to that of the adaptable tubings.

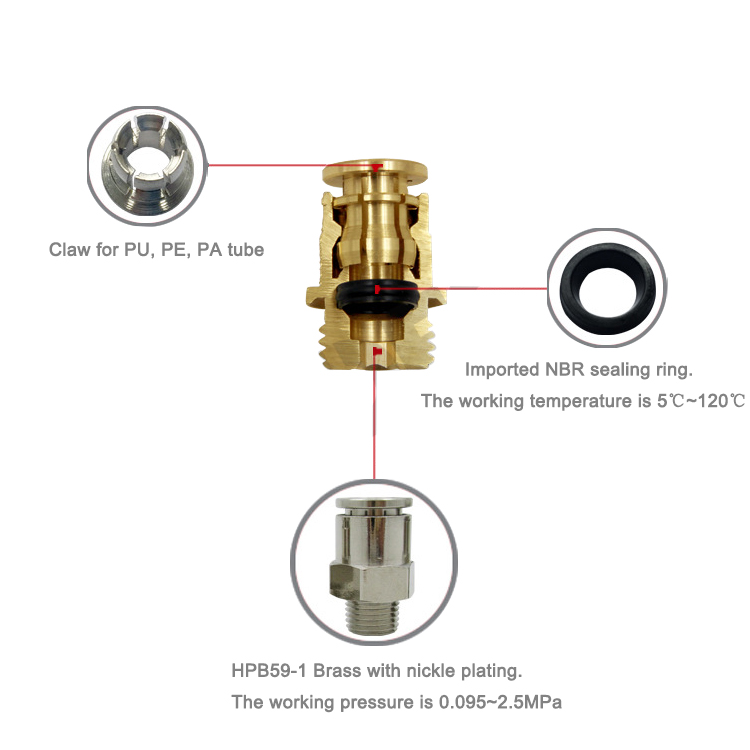

2. Inserting or removal tubing is simple and convenient, and the connecting portion is reliable and durable,
3. Sealant is coated on threaded portion.The M5 metric thread is attached with a sealing gasket, to ensure no leakage of the threaded connection part.
4. The fitting metal body adopts a special nickel-plating process, which has good corrosion resistance
5. Metal fittings can be used in high temperature environment.

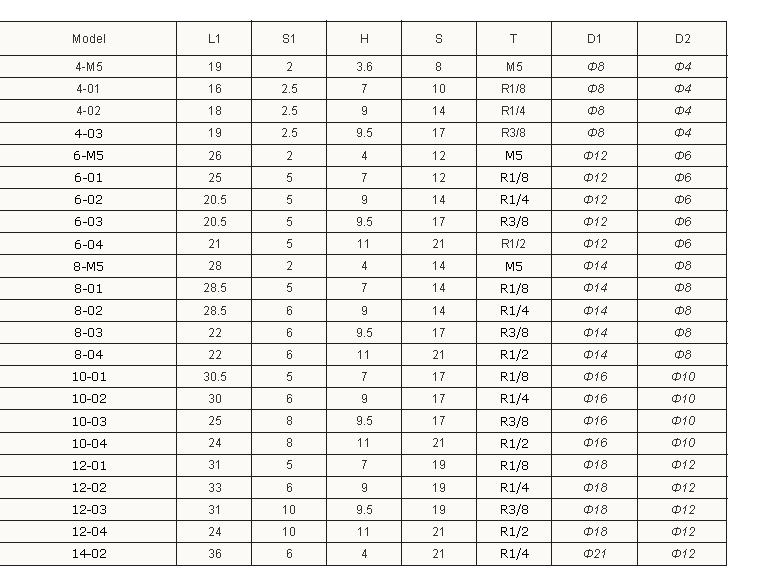

Specification
Diameter |
Ø 4 - 5 -6 - 8 - 10 - 12 - 14 - 16 mm |
Threads |
GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric |
Temperature [°C] |
- 20°C ÷ 80°C (see the technical data of tubing used) |
Tube to connect |
Polyamide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester |
Fluid |
Compressed air (for other types of fluid, contact our engineers) |
Materials |
Standard models: body and collet in nickel-plated brass, O-Ring in NBR, thread |
Working pressure |
Standard models: min - 0,9 bar - max 16 bar (see tubing) |
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A2. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A3. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A4. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A5. We do OEM .
Q6. Which market do you already sell?
A6. We already ship to Middle East, Asia, South America , Afria etc.
Q7. Do you have any certification?
A7. We have CE, Rosh certificate.
