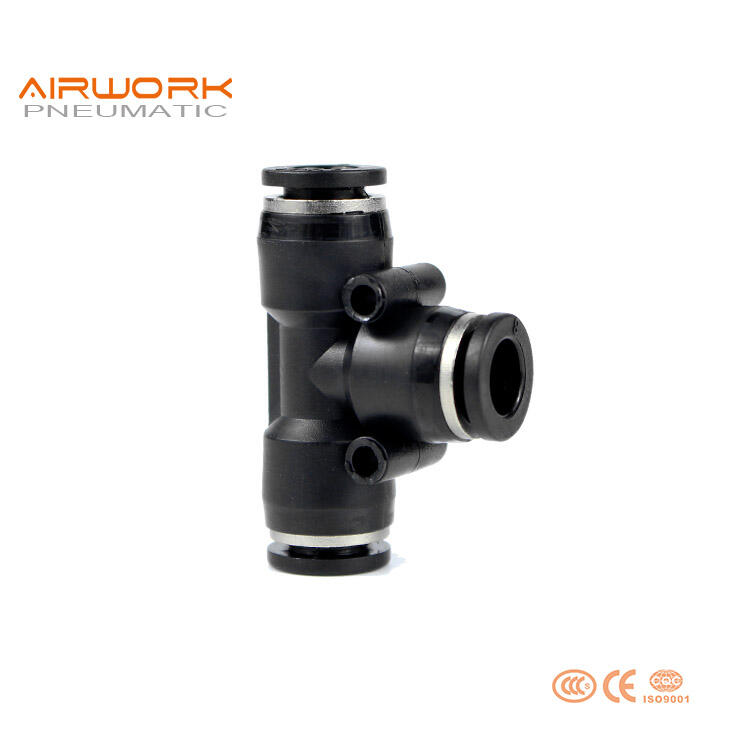

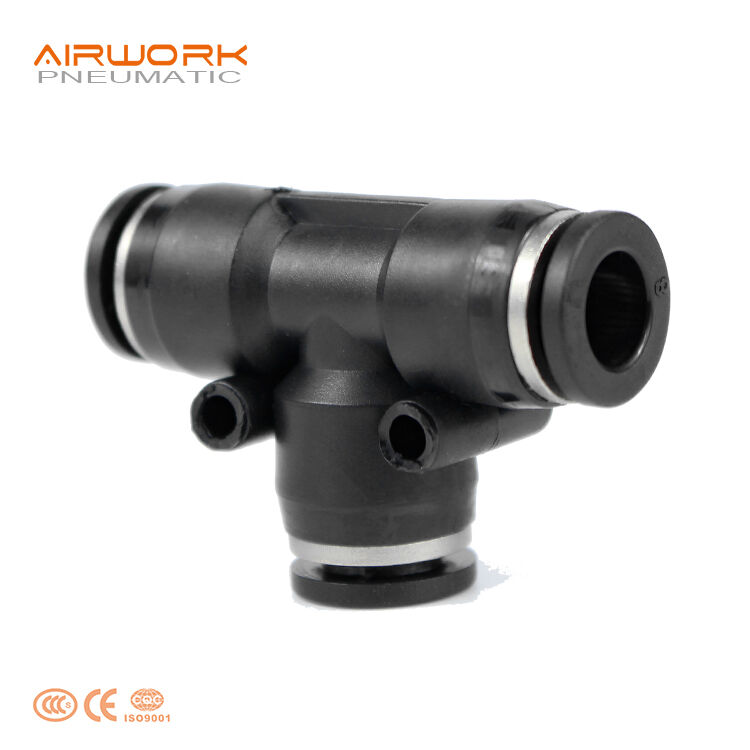

PE-Union tee plastic push-in fittings
Pneumatic fittings, also called compressed air connectors, are an important component in pneumatic connection technology. And there is a matching fitting for every pneumatic tube. At Festo you will find fittings ranging from purely plastic fittings to stainless steel fittings for maximum corrosion resistance and chemical resistance. Discover which compressed air connectors are most suitable for your applications.
Pneumatic push-in fittings are the standard on the market for pneumatic fittings and are very widely used. They are characterised by the easy release function for the tube, i.e. by pressing a releasing ring. These compressed air connectors are used with the standard O.D. tubing that is commonly available on the market.
- Overview
- Recommended Products
Product feature
1. Variable models can be widely used in every kind of pneumatic systems
2. High circulation performance: bear the same flow with the volume of the tubing inside diameter,
3. Connect tubing easily and conveniently. The tubing connection portion is safe and durable.
4. The threaded portion is covered with sealant and the M5 thread is attached with a sealing gasket to prevent air leakage over the connection thread portion.
Specification
Operating pressure range |
0~10kgf/cm(0~1.0MPa) |
Negative pressure |
-750mmHg(10Torr) |
Proof pressure |
1.5MPa |
Ambient and fluid temperature (℃) |
-20~70 |
Applicable tubing |
Soft nylon or polyurethane |
Color |
White/black |
